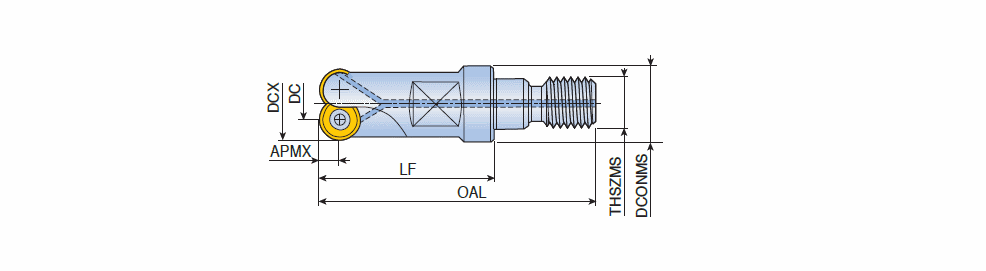

TERD-M-05/07 : Modular end mills with T-FLEXTEC adaptation & positive round inserts for profiling

Designation	Tool sty	DCX	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	S1	RE		HAND	KAPR	RMPX	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	ZNP	GICAT
TERD 210-M08-05	MODULAR ~	10.00	5.00	2	13.00	28.00	45.50	M08	2.50	5.00~	2.50~	0.02	~	3.0~	14.00~	~	F ~	CM-RD05 ~	71E01A05D27A8 ~	RDMX 0501-M	O ~	SAI ~	02 ~	IS$$76875311707950 ~	28.00~	0~	2~	2~	2~	3102575
TERD 212-M08-05	MODULAR ~	12.00	7.00	2	13.00	28.00	45.50	M08	2.50	5.00~	2.50~	0.03	~	3.0~	9.00~	~	RF ~	CM-RD05 ~	71E01A05D27A8 ~	RDMX 0501-M	O ~	SAI ~	02 ~	IS$$76875311707950 ~	28.00~	0~	2~	2~	2~	3102653
TERD 312-M08-05	MODULAR ~	12.00	7.00	3	13.00	28.00	45.50	M08	2.50	5.00~	2.50~	0.03	~	3.0~	9.00~	~	F ~	CM-RD05 ~	71E01A05D27A8 ~	RDMX 0501-M	O ~	SAI ~	02 ~	IS$$76875311707950 ~	28.00~	0~	3~	3~	3~	6162208
TERD 215-M08-07	MODULAR ~	15.00	8.00	2	13.00	23.00	40.50	M08	3.50	7.00~	3.50~	0.02	~	3.0~	17.00~	~	XF ~	CM-RD07 ~	71E01A05D27A8 ~	RDMX 0702-M	O ~	SAI ~	02 ~	IS$$86216894319625 ~	23.00~	0~	2~	2~	2~	3102005
TERD 320-M08-07	MODULAR ~	20.00	13.00	3	13.00	30.00	47.50	M08	3.50	7.00~	3.50~	0.04	~	3.0~	14.00~	~	RF ~	CM-RD07 ~	71E01A05D27A8 ~	RDMX 0702-M	O ~	SAI ~	02 ~	IS$$86216894319625 ~	30.00~	0~	3~	3~	3~	6162209
