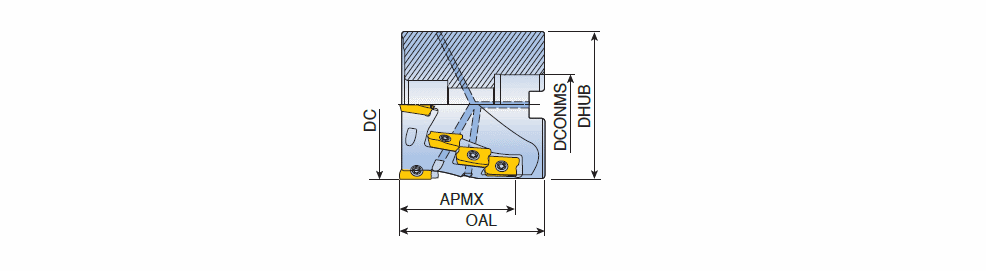

TES-R-AP12 : Extended flute shell mills with helical two cutting edges inserts of APKT 12

Designation	Tool sty	DC	NOF	CICT	DCONMS	DHUB	OAL	APMX	Arbor		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TES D50-45-22R-AP12	EXTENDED FLUTE ~	50.00	4	16	22.00	47.00	65.00	45.00	A	1.05	12.00~	2.50~	90.0~	~	C ~	CM-AP12 ~	SH M10X1.5X40 ~	71E01A05B627B ~	APKT 1204 PER-EM	O ~	FDA ~	02 ~	IS$$767790992606676 ~	65.00~	4~	4~	3107115
TES D63-56-27R-AP12	EXTENDED FLUTE ~	63.00	5	25	27.00	60.00	75.00	56.00	A	1.02	12.00~	1.70~	90.0~	~	C ~	CM-AP12 ~	SH M10X1.5X50 ~	71E01A05B627B ~	APKT 1204 PER-EM	O ~	FDA ~	02 ~	IS$$767790992606676 ~	75.00~	5~	5~	6308444
TES D63-56-27R-AP12-4F	EXTENDED FLUTE ~	63.00	4	20	27.00	60.00	75.00	56.00	A	1.00	12.00~	1.70~	90.0~	~	C ~	CM-AP12 ~	SH M12X1.75X50 ~	71E01A05B627B ~	APKT 1204 PER-EM	O ~	FDA ~	02 ~	IS$$767790992606676 ~	75.00~	4~	4~	6134834
TES D63-56-27R-AP12-6F	EXTENDED FLUTE ~	63.00	6	30	27.00	60.00	75.00	56.00	A	1.00	12.00~	1.70~	90.0~	~	C ~	CM-AP12 ~	SH M12X1.75X50 ~	71E01A05B627B ~	APKT 1204 PER-EM	O ~	FDA ~	02 ~	IS$$767790992606676 ~	75.00~	6~	6~	6134835

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
