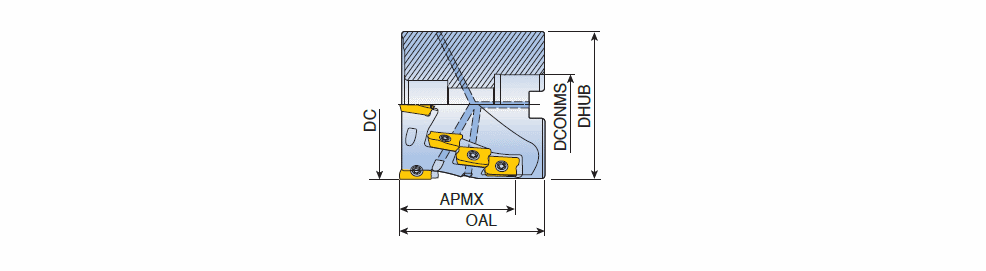

TES-AP17 : Extended flute shell mills with helical two cutting edges inserts of AP.. 17

Designation	Tool sty	DC	NOF	CICT	DCONMS	DHUB	OAL	APMX	Arbor		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	IIC	IIC_2	IIC_3	LTA	ZEFF	ZEFP	GICAT
TES D50-44-22-AP17	EXTENDED FLUTE ~	50.00	2	6	22.00	48.20	60.00	44.00	A	0.54	17.00~	4.40~	90.0~	~	C ~	CM-AP17 ~	SH M10X1.5X40 ~	71E01A05B627B ~	APKT 1705 PER-EM	O ~	FDA ~	02 ~	IS$$739566412056745 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	60.00~	2~	2~	3103235
TES D63-44-27-AP17	EXTENDED FLUTE ~	63.00	3	9	27.00	60.80	63.00	44.00	A	0.91	17.00~	3.20~	90.0~	~	C ~	CM-AP17 ~	SH M12X1.75X40 ~	71E01A05B627B ~	APKT 1705 PER-EM	O ~	FDA ~	02 ~	IS$$739566412056745 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	63.00~	3~	3~	3103206
TES D63-44-27-AP17-4F	EXTENDED FLUTE ~	63.00	4	12	27.00	60.80	63.00	44.00	A	0.90	17.00~	3.20~	90.0~	~	C ~	CM-AP17 ~	SH M12X1.75X40 ~	71E01A05B627B ~	APKT 1705 PER-EM	O ~	FDA ~	02 ~	IS$$739566412056745 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	63.00~	4~	4~	6134830
TES D80-58-32-AP17	EXTENDED FLUTE ~	80.00	4	16	32.00	78.40	75.00	58.00	A	1.87	17.00~	2.30~	90.0~	~	C ~	CM-AP17 ~	SH M16X2.0X50 ~	71E01A05B627B ~	APKT 1705 PER-EM	O ~	FDA ~	02 ~	IS$$739566412056745 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	75.00~	4~	4~	3103236
TES D100-88-40-AP17	EXTENDED FLUTE ~	100.00	5	30	40.00	97.40	110.00	88.00	A	4.76	17.00~	1.80~	90.0~	~	C ~	CM-AP17 ~	SH M20X2.5X80 ~	71E01A05B627B ~	APKT 1705 PER-EM	O ~	FDA ~	02 ~	IS$$739566412056745 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	110.00~	5~	5~	3103287
TES D100-88-40-AP17-4F	EXTENDED FLUTE ~	100.00	4	24	40.00	97.40	110.00	88.00	A	4.40	17.00~	1.80~	90.0~	~	C ~	CM-AP17 ~	SH M20X2.5X80 ~	71E01A05B627B ~	APKT 1705 PER-EM	O ~	FDA ~	02 ~	IS$$739566412056745 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	110.00~	4~	4~	6134831
TES D100-88-40-AP17-6F	EXTENDED FLUTE ~	100.00	6	36	40.00	97.40	110.00	88.00	A	4.30	17.00~	1.80~	90.0~	~	C ~	CM-AP17 ~	SH M20X2.5X80 ~	71E01A05B627B ~	APKT 1705 PER-EM	O ~	FDA ~	02 ~	IS$$739566412056745 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	110.00~	6~	6~	6134832

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
