TFM43OFS-R-05 : 43° Face mills with high positive octagon inserts & simple screw clamping for general milling

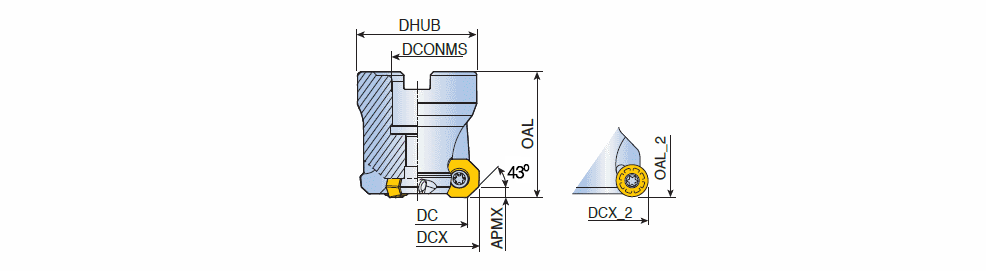

Designation	Tool sty	DC	CICT	DCX	DCX_2	DCONMS	DHUB	OAL	OAL_2	APMX	Arbor		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFM43OFS 332-16R-05	FACE MILL ~	32.00	3	39.60	40.80	16.00	30.00	40.00	40.60	3.50	E	0.30	5.00~	5.50~	43.0~	~	RC ~	CO-OF05 ~	KTB32B (WS8F) ~	71E01A05B627B ~	OFCT 05T3 TN-EM	X ~	FDA ~	02 ~	IS$$125564154818460 ~	40.00~	3~	3~	3~	3101252
TFM43OFS 440-16R-05	FACE MILL ~	40.00	4	47.50	48.70	16.00	38.00	40.00	40.60	3.50	A	0.40	5.00~	4.50~	43.0~	~	RF ~	CO-OF05 ~	SH M8X1.25X30 ~	71E01A05B627B ~	OFCT 05T3 TN-EM	X ~	FDA ~	02 ~	IS$$125564154818460 ~	40.00~	4~	4~	4~	3150212
TFM43OFS 550-22R-05	FACE MILL ~	50.00	5	57.90	59.00	22.00	45.00	40.00	40.60	3.50	A	0.60	5.00~	3.50~	43.0~	~	RF ~	CO-OF05 ~	SH M10X1.5X30 ~	71E01A05B627B ~	OFCT 05T3 TN-EM	X ~	FDA ~	02 ~	IS$$125564154818460 ~	40.00~	5~	5~	5~	3101235
TFM43OFS 663-22R-05	FACE MILL ~	63.00	6	71.00	72.00	22.00	47.00	40.00	40.60	3.50	A	1.00	5.00~	2.80~	43.0~	~	RF ~	CO-OF05 ~	SH M10X1.5X30 ~	71E01A05B627B ~	OFCT 05T3 TN-EM	X ~	FDA ~	02 ~	IS$$125564154818460 ~	40.00~	6~	6~	6~	3101253
TFM43OFS 780-27R-05	FACE MILL ~	80.00	7	88.00	89.00	27.00	70.00	50.00	50.60	3.50	A	1.30	5.00~	2.10~	43.0~	~	RF ~	CO-OF05 ~	SH M12X1.75X35 ~	71E01A05B627B ~	OFCT 05T3 TN-EM	X ~	FDA ~	02 ~	IS$$125564154818460 ~	50.00~	7~	7~	7~	3150213
TFM43OFS 8100-32R-05	FACE MILL ~	100.00	8	108.00	109.00	32.00	85.00	50.00	50.60	3.50	A	2.60	5.00~	1.70~	43.0~	~	RF ~	CO-OF05 ~	LH M16X2.0X35 ~	71E01A05B627B ~	OFCT 05T3 TN-EM	X ~	FDA ~	02 ~	IS$$125564154818460 ~	50.00~	8~	8~	8~	3101254
TFM43OFS 9125-38.1R-05	FACE MILL ~	125.00	9	133.00	134.00	38.10	80.00	63.00	50.60	3.50	B	3.00	5.00~	1.40~	43.0~	~	RF ~	CO-OF05 ~	- ~	71E01A05B627B ~	OFCT 05T3 TN-EM	X ~	FDA ~	02 ~	IS$$125564154818460 ~	63.00~	9~	9~	9~	6162186
TFM43OFS 9125-40R-05	FACE MILL ~	125.00	9	133.00	134.00	40.00	85.00	63.00	63.60	3.50	B	3.00	5.00~	1.40~	43.0~	~	RF ~	CO-OF05 ~	- ~	71E01A05B627B ~	OFCT 05T3 TN-EM	X ~	FDA ~	02 ~	IS$$125564154818460 ~	63.00~	9~	9~	9~	3150214
