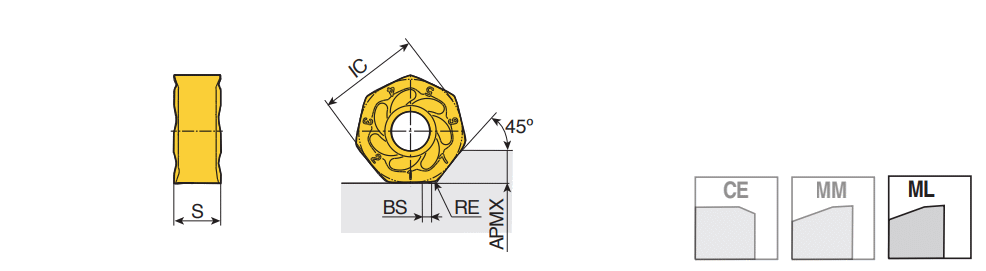

XNHU 09 ANTN-ML : Ground double-sided inserts of economical 14 cutting edges with sharp & positive geometry for difficult-to-cut material in max. depth of cut 5.0 mm

Designation	IC	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	W.link	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
XNHU 0906 ANTN-ML	18.50	6.35	1.00	1.00	5.00	9.00~	1.30	4.00	0.200	0.100	M5.5 ~	C2H-XN09W ~	40~	14~	X ~	71DDA089C8D1E ~	U40 ~	ML ~	TT6080~	IS$$503698204801033 ~	XNHU 09 ~	0~	5615950		2		TT9080 TT6080
