TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

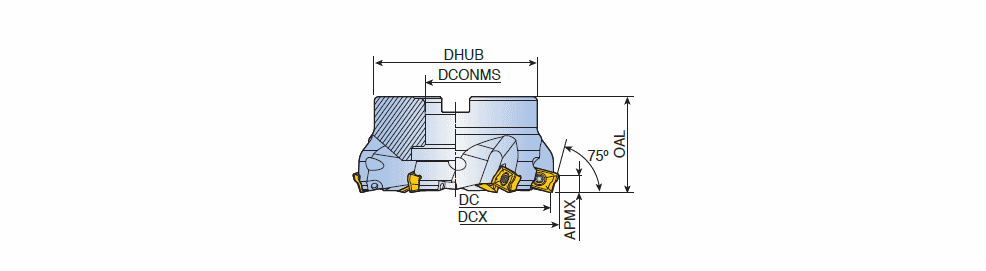

TFM75AP-R-17 : 75° Face mills using other corners of APKT 17 inserts

Designation	Tool sty	DC	CICT	DCONMS	OAL	DHUB	DCX	APMX	Arbor		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	IIC	IIC_2	LTA	ZEFF	ZEFP	ZNP	GICAT
TFM75AP 580-25.4R-17	FACE MILL ~	80.00	5	25.40	50.00	70.00	87.82	3.90	A	0.80	17.00~	2.30~	75.0~	~	RC ~	CM-AP17 ~	SH M12X1.75X35 ~	71E01A05B627B ~	APKT 1705 PER-EM	X ~	FDA ~	02 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	50.00~	5~	5~	5~	3105575
TFM75AP 580-27R-17	FACE MILL ~	80.00	5	27.00	50.00	58.00	87.82	3.90	A	0.80	17.00~	2.30~	75.0~	~	RC ~	CM-AP17 ~	SH M12X1.75X35 ~	71E01A05B627B ~	APKT 1705 PER-EM	X ~	FDA ~	02 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	50.00~	5~	5~	5~	3102792
TFM75AP 6100-31.75R-17	FACE MILL ~	100.00	6	31.75	50.00	80.00	107.82	3.90	B	1.30	17.00~	1.80~	75.0~	~	RC ~	CM-AP17 ~	- ~	71E01A05B627B ~	APKT 1705 PER-EM	X ~	FDA ~	02 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	50.00~	6~	6~	6~	3105576
TFM75AP 6100-32R-17	FACE MILL ~	100.00	6	32.00	50.00	85.00	107.82	3.90	B	1.30	17.00~	1.80~	75.0~	~	RC ~	CM-AP17 ~	- ~	71E01A05B627B ~	APKT 1705 PER-EM	X ~	FDA ~	02 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	50.00~	6~	6~	6~	3102375
TFM75AP 7125-38.1R-17	FACE MILL ~	125.00	7	38.10	63.00	80.00	132.82	3.90	B	3.50	17.00~	1.40~	75.0~	~	RC ~	CM-AP17 ~	- ~	71E01A05B627B ~	APKT 1705 PER-EM	X ~	FDA ~	02 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	63.00~	7~	7~	7~	3105577
TFM75AP 7125-40R-17	FACE MILL ~	125.00	7	40.00	63.00	85.00	132.82	3.90	B	3.50	17.00~	1.40~	75.0~	~	RC ~	CM-AP17 ~	- ~	71E01A05B627B ~	APKT 1705 PER-EM	X ~	FDA ~	02 ~	IS$$739590827922440 ~	IS$$797325573852665 ~	63.00~	7~	7~	7~	3102793

Cutter for the other corners of APKT 17 inserts
