TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

RYHX 08/10/12-L : Positive ground strong round inserts with very sharp cutting edges for exotic materials machining

TT3540&TT9540 : Available upon customer request.

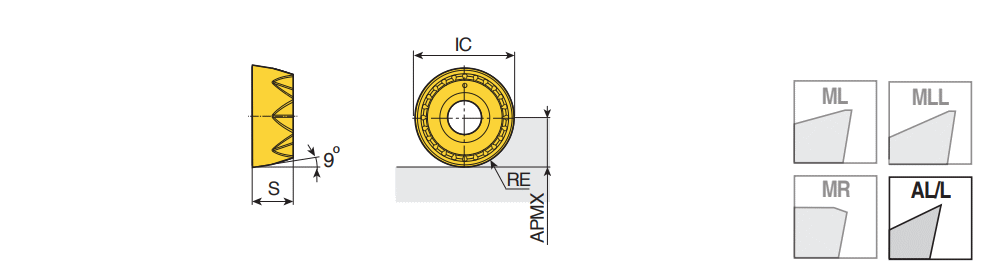

Designation	RE	IC	S	APMX	S1	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
RYHX 1004-L	5.00	10.00	4.00	5.00	10.00~	CM-RY10 ~	1.50	4.00	0.300	0.050	~	R ~	71D1AA6635E76 ~	8~	G20 ~	L ~	TT8080~	IS$$317989276584672 ~	RYM(H)X 10 ~	0~	6106751		1		TT8080
RYHX 1205-L	6.00	12.00	4.80	6.00	12.00~	CM-RY12 ~	1.50	5.00	0.350	0.050	~	R ~	71D1AA6635E76 ~	8~	G20 ~	L ~	TT3520~	IS$$451378334912466 ~	RYM(H)X 12 ~	0~	6252126		1		TT3520
