TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

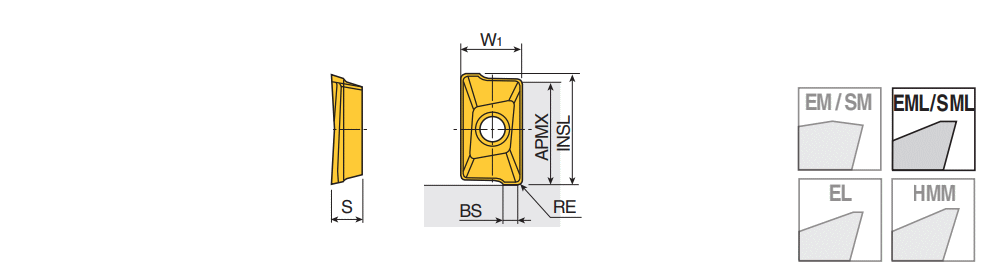

APKT 1204 PER-EML : High positive inserts with low cutting forces from sharp cutting edges of APKT 12 inserts for 90° shoulders

TT3540&TT9540 : Available upon customer request.

Designation	INSL	W1	S	BS	RE	APMX	S1	S2	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
APKT 120430R-EML	13.60	8.30	4.67	-	3.00	12.00	12.00~	2 ~	2~	CM-AP12 ~	3.50	10.00	0.080	0.040	M6 ~	A ~	71DD68D91938A ~	U40 ~	EML ~	TT3535~	IS$$767790992606676 ~	APKT 12 ~	0~	6252101		1		TT3535
APKT 1204 PER-EML	14.60	8.30	4.73	1.60	0.80	12.50	12.00~	2.00000 ~	2~	CM-AP12 ~	3.50	10.00	0.080	0.040	M6 ~	A ~	71DD68D91938A ~	U40 ~	EML ~	TT8080~	IS$$767790992606676 ~	APKT 12 ~	0~	5613269		2		TT8080 TT9080
