RNMU 10/12/16-ML : Double-sided economical round inserts for general milling applications with max. 8 index per side (total 16 corners) when the depth of cut is limited.

TT3540&TT9540 : Available upon customer request.

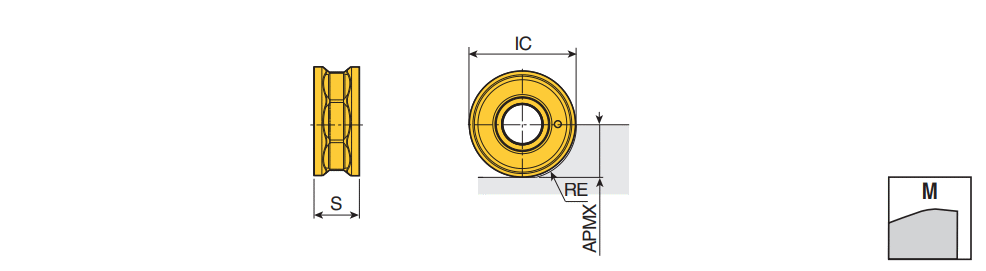

Designation	RE	IC	S	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	SC	ClssID	CBMD	CEDC	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RNMU 1004-ML	5.00	10.00	4.50	5.00	10.00~	1.50	4.00	0.300	0.050	M8 ~	C2M-RN10 ~	R ~	71D1AA6635E76 ~	ML ~	16~	U40 ~	TT2510~	IS$$184131593467668 ~	RNMU 10 ~	0~	6126888	4	TT8080 TT7800 TT9080 TT2510
RNMU 1205-ML	6.00	12.00	5.00	6.00	12.00~	1.50	5.00	0.350	0.050	M8 ~	C2M-RN12 ~	R ~	71D1AA6635E76 ~	ML ~	16~	U40 ~	8525B ~	IS$$328463169737325 ~	RNMU 12 ~	0~	6338577	7	TT8020 TT8080 TT8525B TT9540 TT3520 TT9080 TT2510
RNMU 1606-ML	8.00	16.00	6.30	8.00	16.00~	2.00	6.50	0.400	0.050	M8 ~	C2M-RN12 ~	R ~	71D1AA6635E76 ~	ML ~	16~	U40 ~	TT2510~	IS$$202746299950540 ~	RNMU 16 ~	0~	6252123	5	TT8020 TT8080 TT3520 TT9080 TT2510
