TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TSF-06 : Spot facing end mills with XOMT 06 inserts

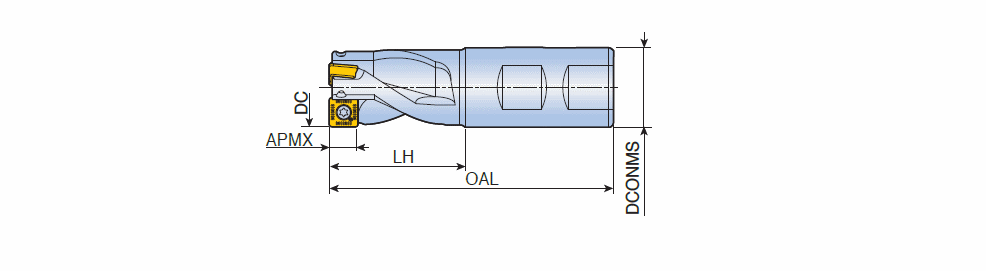

Designation	Tool sty	DC	CICT	LH	DCONMS	OAL	Cd	APMX	S1	Shank	RMPX	e		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		AE	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TSF 112-W16-06	ENDMILL ~	12.00	1	27.00	16.00	80.00	18.00	5.60	6.00~	W ~	0.00~	3 ~	0.10	90.0~	~	~	RC ~	CQ-XO06 ~	71E01A05D27A8 ~	XOMT 060204	X ~	5.8~	ZYL ~	10 ~	IS$$76944682683351 ~	32.00~	1~	1~	3101404
TSF 216-W20-06	ENDMILL ~	16.00	2	27.00	20.00	90.00	18.00	5.60	6.00~	W ~	0.00~	~	0.18	90.0~	~	~	RC ~	CQ-XO06 ~	71E01A05D27A8 ~	XOMT 060204	X ~	5.8~	ZYL ~	10 ~	IS$$76944682683351 ~	40.00~	2~	2~	3101405
TSF 320-W20-06	ENDMILL ~	20.00	3	25.00	20.00	100.00	18.00	5.60	6.00~	W ~	0.00~	~	0.22	90.0~	~	~	RF ~	CQ-XO06 ~	71E01A05D27A8 ~	XOMT 060204	X ~	5.8~	ZYL ~	10 ~	IS$$76944682683351 ~	50.00~	3~	3~	3101264
