TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

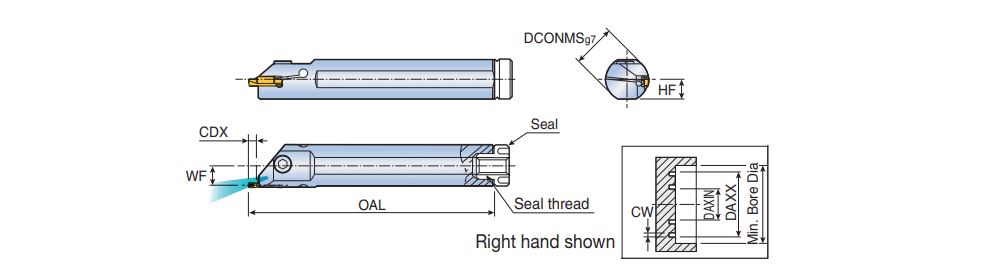

TGIFR/L : Boring bars with coolant holes for shallow internal face grooving and face turning

Designation	CWN	CWX	Seat Siz	DCONMS	OAL	WF	HF	CDX	S1	S2		Tool typ	HAND	ClssID	MIID	SSC	SSC	IIC	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	GICAT
TGIFL 25-4C-T5.5	1.00	4.20	3,4	25.00	200.00	11.30	11.5	5.50	3 ~	4 ~	O ~	ROUND ~	L ~	71E01A0E9CBA9 ~	TDXU 4E-0.4 ~	3 ~	4 ~	IS$$1539718134533175 ~	IS$$1573220805363182 ~	IS$$1998818226937442 ~	IS$$2090331413883537 ~	IS$$2123833997319338 ~	IS$$2438625430718521 ~	6163765
TGIFL 32-4C-T5.5	1.00	4.20	3,4	32.00	250.00	14.80	15.0	5.50	3 ~	4 ~	O ~	ROUND ~	L ~	71E01A0E9CBA9 ~	TDXU 4E-0.4 ~	3 ~	4 ~	IS$$1539718134533175 ~	IS$$1573220805363182 ~	IS$$1998818226937442 ~	IS$$2090331413883537 ~	IS$$2123833997319338 ~	IS$$2438625430718521 ~	2801733
TGIFR 25-4C-T5.5	1.00	4.20	3,4	25.00	200.00	11.30	11.5	5.50	3 ~	4 ~	O ~	ROUND ~	R ~	71E01A0E9CBA9 ~	TDXU 4E-0.4 ~	3 ~	4 ~	IS$$1539718134533175 ~	IS$$1573220805363182 ~	IS$$1998818226937442 ~	IS$$2090331413883537 ~	IS$$2123833997319338 ~	IS$$2438625430718521 ~	2801728
TGIFR 32-4C-T5.5	1.00	4.20	3,4	32.00	250.00	14.80	15.0	5.50	3 ~	4 ~	O ~	ROUND ~	R ~	71E01A0E9CBA9 ~	TDXU 4E-0.4 ~	3 ~	4 ~	IS$$1539718134533175 ~	IS$$1573220805363182 ~	IS$$1998818226937442 ~	IS$$2090331413883537 ~	IS$$2123833997319338 ~	IS$$2438625430718521 ~	2801729
TGIFL 25-6C-T5.5	4.20	6.00	5,6	25.00	200.00	10.30	11.5	5.50	5 ~	6 ~	O ~	ROUND ~	L ~	71E01A0E9CBA9 ~	TDXU 6E-0.4 ~	5 ~	6 ~	IS$$1025001670753300 ~	IS$$1045618686511192 ~	IS$$1884778301769237 ~	IS$$884964253522797 ~	IS$$905581278244188 ~	~	6163766
TGIFL 32-6C-T5.5	4.20	6.00	5,6	32.00	250.00	13.80	15.0	5.50	5 ~	6 ~	O ~	ROUND ~	L ~	71E01A0E9CBA9 ~	TDXU 6E-0.4 ~	5 ~	6 ~	IS$$1025001670753300 ~	IS$$1045618686511192 ~	IS$$1884778301769237 ~	IS$$884964253522797 ~	IS$$905581278244188 ~	~	2801735
TGIFR 25-6C-T5.5	4.20	6.00	5,6	25.00	200.00	10.30	11.5	5.50	5 ~	6 ~	O ~	ROUND ~	R ~	71E01A0E9CBA9 ~	TDXU 6E-0.4 ~	5 ~	6 ~	IS$$1025001670753300 ~	IS$$1045618686511192 ~	IS$$1884778301769237 ~	IS$$884964253522797 ~	IS$$905581278244188 ~	~	2801730
TGIFR 32-6C-T5.5	4.20	6.00	5,6	32.00	250.00	13.80	15.0	5.50	5 ~	6 ~	O ~	ROUND ~	R ~	71E01A0E9CBA9 ~	TDXU 6E-0.4 ~	5 ~	6 ~	IS$$1025001670753300 ~	IS$$1045618686511192 ~	IS$$1884778301769237 ~	IS$$884964253522797 ~	IS$$905581278244188 ~	~	6163764
