TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TSF-09/11/14 : Spot facing end mills with SPMT and SPMG 09/11/14 milling inserts

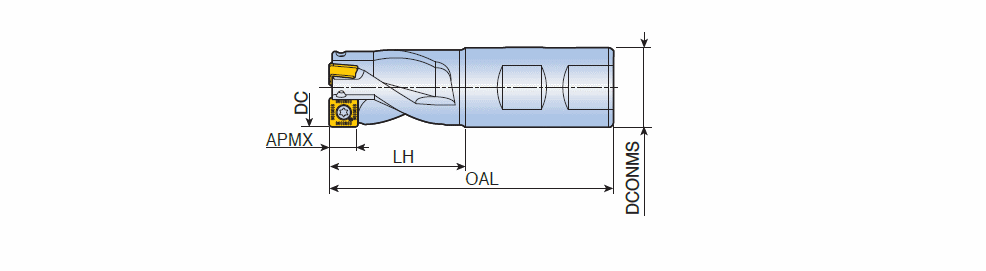

Designation	Tool sty	DC	CICT	LH	DCONMS	OAL	APMX	S1	Shank	RMPX		KAPR	HAND	Arbor	PD	Insert	CCTMS	CCFMS	Cd	ClssID	MIID		AE	IIC	LTA	ZEFF	ZEFP	GICAT
TSF 222-W25-09	ENDMILL ~	22.00	2	40.00	25.00	100.00	9.00	9.00~	W ~	0.00~	0.29	90.0~	~	~	RC ~	CQ-SP09 ~	ZYL ~	10 ~	28.00~	71E01A05D27A8 ~	SPMT 090408-EM	X ~	8.6~	IS$$48090016923861 ~	44.00~	2~	2~	3101406
TSF 225-W25-09	ENDMILL ~	25.00	2	40.00	25.00	100.00	9.00	9.00~	W ~	0.00~	0.56	90.0~	~	~	C ~	CQ-SP09 ~	ZYL ~	10 ~	28.00~	71E01A05D27A8 ~	SPMT 090408-EM	X ~	8.8~	IS$$48090016923861 ~	44.00~	2~	2~	3101265
TSF 332-W32-11	ENDMILL ~	32.00	3	55.00	32.00	115.00	10.70	11.00~	W ~	0.00~	1.31	90.0~	~	~	RC ~	CQ-SP11 ~	ZYL ~	10 ~	39.00~	71E01A05D27A8 ~	SPMT 110408-EM	X ~	10.5~	IS$$153644533141008 ~	55.00~	3~	3~	3101266
TSF 440-W32-11	ENDMILL ~	40.00	4	55.00	32.00	125.00	10.70	11.00~	W ~	0.00~	1.05	90.0~	~	~	RF ~	CQ-SP11 ~	ZYL ~	10 ~	39.00~	71E01A05D27A8 ~	SPMT 110408-EM	X ~	10.5~	IS$$153644533141008 ~	65.00~	4~	4~	3101407
TSF 445-W32-14	ENDMILL ~	45.00	4	70.00	32.00	130.00	13.40	14.00~	W ~	0.00~	0.81	90.0~	~	~	RF ~	CQ-SP14 ~	ZYL ~	10 ~	50.00~	71E01A05D27A8 ~	SPMT 140508-EM	X ~	13.3~	IS$$57708816713658 ~	70.00~	4~	4~	3101408
TSF 450-W32-14	ENDMILL ~	50.00	4	80.00	32.00	140.00	13.40	14.00~	W ~	0.00~	1.05	90.0~	~	~	RC ~	CQ-SP14 ~	ZYL ~	10 ~	60.00~	71E01A05D27A8 ~	SPMT 140508-EM	X ~	13.3~	IS$$57708816713658 ~	80.00~	4~	4~	3101267
