TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

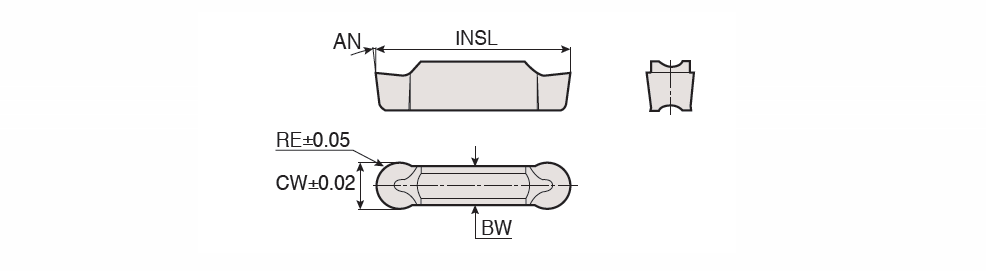

TDA (Full radius) : Precision ground double-ended inserts for aluminum wheel in machining

Designation	SSC	CW	RE	BW	INSL	h	AN	S1	SC	R	ft (min)	ft (max)	ap (max)	fg (min)	fg (max)	CB1	W	W+-toler	Tmax-r	ClssID	HAND	COATP	CEDC	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TDA 3.00-1.50	3	3.00	1.50	2.4	20.00	4.7~	7.0	3.00~	L ~	0.050~	0.15	0.30	1.50	0.08	0.16	P4 ~	3.00~	0.02~	0.00~	71DDA089C8D1E ~	N ~	UNCOATED ~	2~	A ~	K10 ~	IS$$2739302312302764 ~	6401408	1	K10
TDA 4.00-2.00	4	4.00	2.00	3.0	20.00	4.7~	7.0	4.00~	L ~	0.050~	0.20	0.43	2.00	0.10	0.22	P4 ~	4.00~	0.02~	0.00~	71DDA089C8D1E ~	N ~	UNCOATED ~	2~	A ~	K10 ~	IS$$2503543647338250 ~	6401409	1	K10
TDA 5.00-2.50	5	5.00	2.50	4.0	25.00	5.2~	7.0	5.00~	L ~	0.050~	0.00	0.00	0.00	0.00	0.00	P4 ~	5.00~	0.02~	0.00~	71DDA089C8D1E ~	N ~	UNCOATED ~	2~	A ~	K10 ~	IS$$2387657513795232 ~	6400326	1	K10
TDA 6.00-3.00	6	6.00	3.00	5.0	25.00	5.2~	7.0	6.00~	L ~	0.050~	0.21	0.58	3.00	0.11	0.29	P4 ~	6.00~	0.02~	0.00~	71DDA089C8D1E ~	N ~	UNCOATED ~	2~	A ~	K10 ~	IS$$2551166852689700 ~	6400303	1	K10
TDA 8.00-4.00	8	8.00	4.00	6.0	30.00	6.4~	10.0	8.00~	L ~	0.050~	0.24	0.67	4.00	0.14	0.38	P4 ~	8.00~	0.02~	0.00~	71DDA089C8D1E ~	N ~	UNCOATED ~	2~	A ~	K10 ~	IS$$2465048099335620 ~	6400302	1	K10
