TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

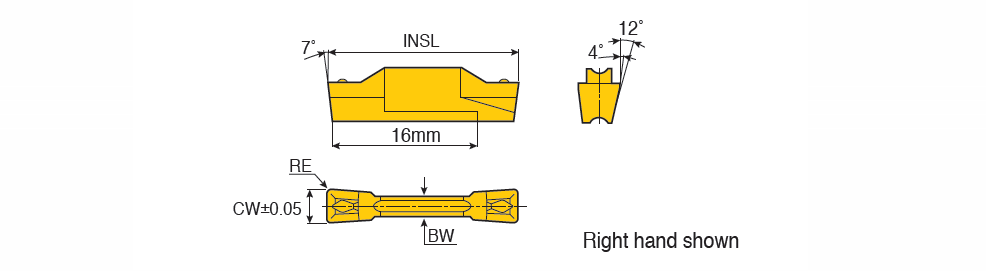

TDFT-E-R/L : Precision double-ended inserts for face grooving and turning

Designation	SSC	CW	RE	BW	INSL	h	S1	SC	R	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CB1	W	W+-toler	D min	D max	ClssID	HAND	COATP	CEDC	CBMD	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TDFT 3E-0.4L	3	3.00	0.40	2.2	20.00	4.7~	3.00~	L ~	0.050~	0.50	0.20	0.15	0.22	0.07	0.15	P4E ~	3.00~	0.05~	18.0~	-~	71DDA089C8D1E ~	L ~	CVD ~	0~	T ~	K10 ~	IS$$507885271860560 ~	6400690	3	TT7220 TT5100 K10
TDFT 3E-0.4R	3	3.00	0.40	2.2	20.00	4.7~	3.00~	L ~	0.050~	0.50	0.20	0.15	0.22	0.07	0.15	P4E ~	3.00~	0.05~	18.0~	-~	71DDA089C8D1E ~	R ~	CVD ~	0~	T ~	K10 ~	IS$$419702220755392 ~	6400689	3	TT7220 TT5100 K10
TDFT 4E-0.4L	4	4.00	0.40	3.0	20.00	4.7~	4.00~	L ~	0.050~	0.50	2.40	0.18	0.30	0.09	0.18	P4E ~	4.00~	0.05~	18.0~	-~	71DDA089C8D1E ~	L ~	CVD ~	0~	T ~	K10 ~	IS$$565302813660300 ~	6400692	3	TT7220 TT5100 K10
TDFT 4E-0.4R	4	4.00	0.40	3.0	20.00	4.7~	4.00~	L ~	0.050~	0.50	2.40	0.18	0.30	0.09	0.18	P4E ~	4.00~	0.05~	18.0~	-~	71DDA089C8D1E ~	R ~	CVD ~	0~	T ~	K10 ~	IS$$532486883175173 ~	6400691	3	TT7220 TT5100 K10

Apply R insert on R tool and L insert on L tool
Click the Better Suggestions icon to see more choices.
