TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

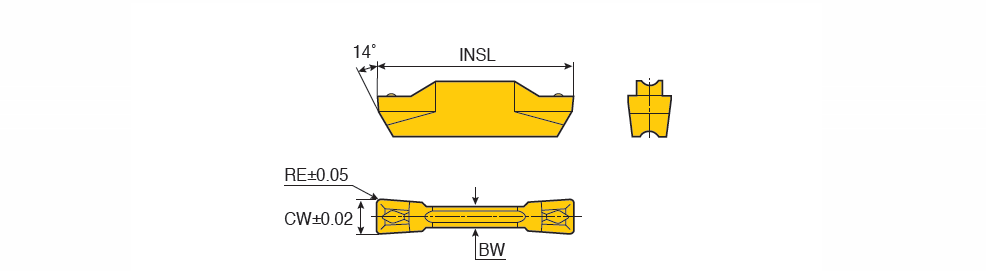

TDIT-E. : Precision double-ended inserts for internal turning and grooving

Designation	SSC	CW	RE	BW	INSL	h	S1	SC	R	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TDIT 3.00E-0.40	3	3.00	0.40	2.2	20.00	4.7~	3.00~	L ~	0.050~	0.50	1.80	0.15	0.22	0.07	0.15	P4E ~	3.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$396619068831640 ~	6400313	3	TT7220 TT5100 K10
TDIT 4.00E-0.40	4	4.00	0.40	3.0	20.00	4.7~	4.00~	L ~	0.050~	0.50	2.40	0.18	0.30	0.09	0.18	P4E ~	4.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$236237909574732 ~	6400667	3	TT7220 TT5100 K10
TDIT 4.00E-0.80	4	4.00	0.80	3.0	20.00	4.7~	4.00~	L ~	0.050~	0.50	2.40	0.18	0.30	0.09	0.18	P4E ~	4.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$236237909574732 ~	6400668	3	TT7220 TT5100 K10
TDIT 5.00E-0.40	5	5.00	0.40	4.0	25.00	5.2~	5.00~	L ~	0.050~	1.00	2.30	0.20	0.35	0.11	0.20	P4E ~	5.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	TT5100~	IS$$157785996850356 ~	6400315	2	TT7220 TT5100
TDIT 5.00E-0.80	5	5.00	0.80	4.0	25.00	5.2~	5.00~	L ~	0.050~	1.00	3.00	0.23	0.35	0.11	0.21	P4E ~	5.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	TT5100~	IS$$157785996850356 ~	6400675	2	TT7220 TT5100
TDIT 6.00E-0.80	6	6.00	0.80	5.0	25.00	5.2~	6.00~	L ~	0.050~	1.30	3.60	0.24	0.42	0.13	0.30	P4E ~	6.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	TT5100~	IS$$97709757913860 ~	6400682	2	TT7220 TT5100
TDIT 8.00E-0.80	8	8.00	0.80	6.0	30.00	6.4~	0.00~	L ~	0.050~	1.00	4.80	0.30	0.56	0.15	0.40	P4E ~	8.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$31362973670488 ~	6400687	3	TT7220 TT5100 K10
TDIT 8.00E-1.20	8	8.00	1.20	6.0	30.00	6.4~	8.00~	L ~	0.050~	1.30	4.80	0.30	0.56	0.15	0.40	P4E ~	8.00~	0.02~	71DDA089C8D1E ~	N ~	2~	PVD ~	T ~	TT7220~	IS$$31362973670488 ~	6400319	1	TT7220
