Home Page > Thread Making > > ER/L-EL

Thread Making
Main Application

Related Tool

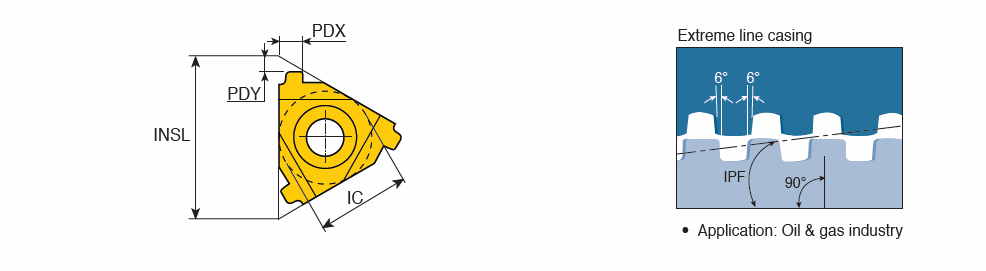

ER/L-EL : External EL- Extreme line oil thread profile threading inserts

External right-hand shown

Designation	IC	TPI	l	X	Y	SC	ClssID	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
22ER 6 EL 1.5	12.70	6.0	22.00	1.9	1.9	T ~	71DDA089C8D1E ~	TT9030~	IS$$165034345470652 ~	5922729		1		TT9030

ANSI B1.9-1973 class 2
