TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

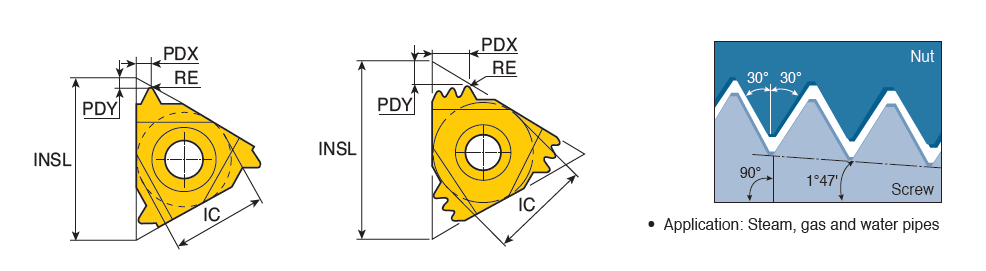

ER/L-NPT : External NPT (National Pipe Threads) full profile threading inserts for steam, gas and water pipes

External right-hand shown

Designation	IC	TPI	INSL	RE	PDY	PDX	SC	ClssID	HAND	GRDMFG	IIC	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
16ER 8 NPT	9.52	8.0	16.00	0.12	1.3	1.6	T ~	71DDA089C8D1E ~	R ~	P30 ~	IS$$315600989200000 ~	5921987		2	P30 TT9030
16ERB 8 NPT	9.52	8.0	16.00	0.11	1.4	1.7	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6111429	With pressed chip breaker	1	TT9030
16ERM 8 NPT	9.52	8.0	16.00	0.12	1.3	1.8	T ~	71DDA089C8D1E ~	R ~	TT7010~	IS$$315600989200000 ~	5921960	With pressed chip breaker	2	TT7010 TT9030
16EL 11.5 NPT	9.52	11.5	16.00	0.09	1.1	1.5	T ~	71DDA089C8D1E ~	L ~	TT9030~	IS$$82516744303675 ~	5922277		1	TT9030
16ER 11.5 NPT	9.52	11.5	16.00	0.09	1.1	1.5	T ~	71DDA089C8D1E ~	R ~	P30 ~	IS$$315600989200000 ~	5921964		2	P30 TT9030
16ERB 11.5 NPT	9.52	11.5	16.00	0.09	1.1	1.5	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6111413	With pressed chip breaker	1	TT9030
16ERM 11.5 NPT	9.52	11.5	16.00	0.09	1.1	1.5	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6224428	With pressed chip breaker	1	TT9030
16EL 14 NPT	9.52	14.0	16.00	0.07	0.9	1.2	T ~	71DDA089C8D1E ~	L ~	TT9030~	IS$$82516744303675 ~	6304216		1	TT9030
16ER 14 NPT	9.52	14.0	16.00	0.07	0.9	1.2	T ~	71DDA089C8D1E ~	R ~	TT8010~	IS$$315600989200000 ~	5922036		2	TT8010 TT9030
16ERB 14 NPT	9.52	14.0	16.00	0.07	0.9	1.2	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6111417	With pressed chip breaker	1	TT9030
16ERM 14 NPT	9.52	14.0	16.00	0.05	0.9	1.2	T ~	71DDA089C8D1E ~	R ~	P30 ~	IS$$315600989200000 ~	6224429	With pressed chip breaker	3	P30 TT7010 TT9030
16ER 18 NPT	9.52	18.0	16.00	0.06	0.9	1.1	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922070		1	TT9030
16ERB 18 NPT	9.52	18.0	16.00	0.06	0.9	1.1	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6111421	With pressed chip breaker	1	TT9030
16ERM 18 NPT	9.52	18.0	16.00	0.05	0.8	1.0	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922357	With pressed chip breaker	1	TT9030
16ER 27 NPT	9.52	27.0	16.00	0.04	0.7	0.8	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922290		1	TT9030
22ER 11.50 NPT 2M	12.70	11.5	22.00	0.09	2.3	3.5	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$97110128545892 ~	5922621	Multi-tooth	1	TT9030
27ER 8 NPT 2M	15.88	8.0	27.00	0.12	3.1	4.9	T ~	71DDA089C8D1E ~	R ~	TT9030~	~	5922718	Multi-tooth	1	TT9030
