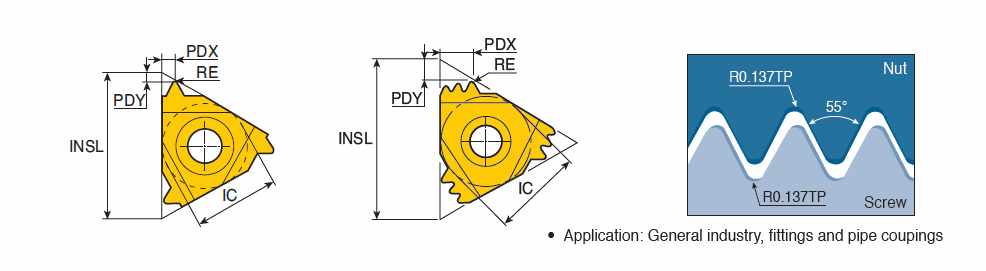

ER/L-W : External Whitworth full profile (BSW, BSF, BSP) threading inserts

External right-hand shown

Designation	IC	TPI	INSL	RE	PDY	PDX	SC	ClssID	HAND	GRDMFG	IIC	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
11ER 14 W	6.35	14.0	11.00	0.23	0.7	1.0	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$29185159081100 ~	5922159		1	TT9030
11ER 19 W	6.35	19.0	11.00	0.15	0.8	1.0	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$29185159081100 ~	5922703		1	TT9030
16ER 8 W	9.52	8.0	16.00	0.41	1.2	1.6	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922082		1	TT9030
16ER 9 W	9.52	9.0	16.00	0.34	1.2	1.7	T ~	71DDA089C8D1E ~	R ~	TT7010~	IS$$315600989200000 ~	5921660		1	TT7010
16ER 10 W	9.52	10.0	16.00	0.32	1.1	1.5	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922084		1	TT9030
16ERB 10 W	9.52	10.0	16.00	0.32	1.1	1.5	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6111409	With pressed chip breaker	1	TT9030
16EL 11 W	9.52	11.0	16.00	0.29	1.1	1.5	T ~	71DDA089C8D1E ~	L ~	TT7010~	IS$$82516744303675 ~	5922571		2	TT7010 TT9030
16ER 11 W	9.52	11.0	16.00	0.29	1.1	1.5	T ~	71DDA089C8D1E ~	R ~	P30 ~	IS$$315600989200000 ~	5921983		3	P30 TT7010 TT9030
16ERB 11 W	9.52	11.0	16.00	0.29	1.1	1.5	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6111412	With pressed chip breaker	1	TT9030
16ERM 11 W	9.52	11.0	16.00	0.27	1.1	1.5	T ~	71DDA089C8D1E ~	R ~	TT7010~	IS$$315600989200000 ~	5920028	Tolerance: Medium class	2	TT7010 TT9030
16ER 12 W	9.52	12.0	16.00	0.27	1.2	1.4	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922018		1	TT9030
16EL 14 W	9.52	14.0	16.00	0.23	1.0	1.2	T ~	71DDA089C8D1E ~	L ~	TT9030~	IS$$82516744303675 ~	5922391		1	TT9030
16ER 14 W	9.52	14.0	16.00	0.23	1.0	1.2	T ~	71DDA089C8D1E ~	R ~	TT7010~	IS$$315600989200000 ~	5922034		3	TT8010 TT7010 TT9030
16ER 14 W 2M	9.52	14.0	16.00	0.21	1.7	2.7	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922617	Multi-tooth	1	TT9030
16ERB 14 W	9.52	14.0	16.00	0.23	1.0	1.2	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6111419	With pressed chip breaker	1	TT9030
16ERM 14 W	9.52	14.0	16.00	0.24	1.0	1.2	T ~	71DDA089C8D1E ~	R ~	P30 ~	IS$$315600989200000 ~	5920042	Tolerance: Medium class	3	P30 TT7010 TT9030
16ER 16 W	9.52	16.0	16.00	0.20	0.9	1.2	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5921996		1	TT9030
16ERB 16 W	9.52	16.0	16.00	0.20	0.9	1.2	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6111420	With pressed chip breaker	1	TT9030
16ERM 16 W	9.52	16.0	16.00	0.20	0.9	1.1	T ~	71DDA089C8D1E ~	R ~	TT7010~	IS$$315600989200000 ~	6346177	Tolerance: Medium class	2	TT7010 TT9030
16ER 18 W	9.52	18.0	16.00	0.19	1.1	1.1	T ~	71DDA089C8D1E ~	R ~	P30 ~	IS$$315600989200000 ~	5922117		2	P30 TT9030
16EL 19 W	9.52	19.0	16.00	0.17	0.7	0.8	T ~	71DDA089C8D1E ~	L ~	TT9030~	IS$$82516744303675 ~	5922572		1	TT9030
16ER 19 W	9.52	19.0	16.00	0.17	0.7	0.8	T ~	71DDA089C8D1E ~	R ~	TT8010~	IS$$315600989200000 ~	5922042		2	TT8010 TT9030
16ERB 19 W	9.52	19.0	16.00	0.17	0.7	0.8	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6111423	With pressed chip breaker	1	TT9030
16ERM 19 W	9.52	19.0	16.00	0.16	0.8	1.0	T ~	71DDA089C8D1E ~	R ~	TT7010~	IS$$315600989200000 ~	6346179	Tolerance: Medium class	2	TT7010 TT9030
16ER 20 W	9.52	20.0	16.00	0.16	0.7	0.8	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922132		1	TT9030
16ER 22 W	9.52	22.0	16.00	0.13	0.8	0.9	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	6261316		1	TT9030
16ER 24 W	9.52	24.0	16.00	0.14	0.7	0.8	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922288		1	TT9030
16ER 26 W	9.52	26.0	16.00	0.12	0.7	0.7	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$315600989200000 ~	5922289		1	TT9030
16ER 28 W	9.52	28.0	16.00	0.11	0.6	0.7	T ~	71DDA089C8D1E ~	R ~	TT7010~	IS$$315600989200000 ~	5922148		2	TT7010 TT9030
22ER 5 W	12.70	5.0	22.00	0.65	1.7	2.4	T ~	71DDA089C8D1E ~	R ~	TT7010~	IS$$97110128545892 ~	6130716		1	TT7010
22ER 6 W	12.70	6.0	22.00	0.52	1.6	2.3	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$97110128545892 ~	5922213		1	TT9030
22ER 7 W	12.70	7.0	22.00	0.45	1.6	2.3	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$97110128545892 ~	5922333		1	TT9030
22ER 11 W 2M	12.70	11.0	22.00	0.09	2.2	3.4	T ~	71DDA089C8D1E ~	R ~	TT9030~	IS$$97110128545892 ~	5922619	Multi-tooth	1	TT9030
27ER 4 W	15.88	4.0	27.00	0.85	2.0	2.9	T ~	71DDA089C8D1E ~	R ~	TT9030~	~	5922677		1	TT9030

Tolerance: Medium class
