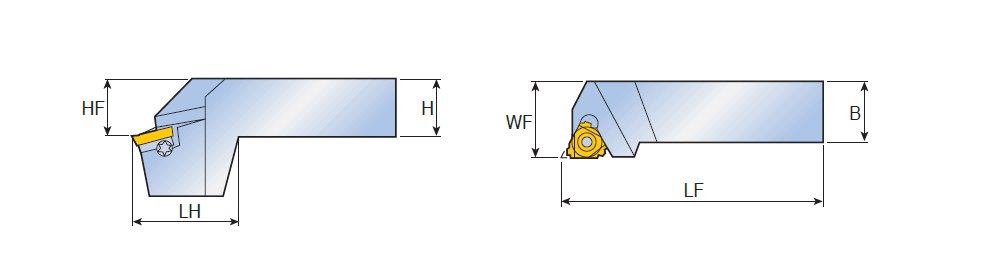

SER-D : External threading drophead toolholders.
Right-hand shown

Right-hand shown

  DesignationH HF B LF WF LH IC l2 HAND IIC IIC_2 GICATGIREMgiicGICODE
  SER 2525 M16D 25.025.025.0150.0032.0038.09.52~21.0~R ~IS$$315600989200000 ~IS$$398117668700000 ~3820139 0
  SER 2525 M22D 25.025.025.0150.0032.0038.012.70~21.0~R ~IS$$165034345470652 ~IS$$97110128545892 ~3820181 0
All Toolholders are made with 1.5 deg.helix angle For multi-tooth inserts use anvils AE16M, AE22M, AE27M
