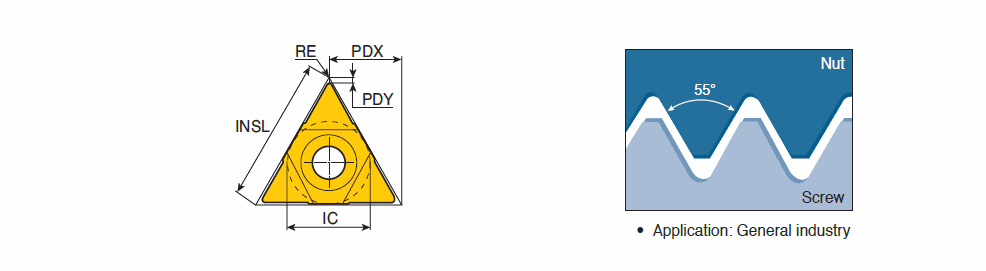

UEIRL-55 : External/Internal 55 partial profile U-type threading inserts

Designation	IC	TPN	TPX	TPIX	TPIN	INSL	RE	PDY	PDX	SC	ClssID	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
22UEIRL U 55	12.70	5.50	8.00	4.5	3.3	22.00	0.60	0.9	11.0	T ~	71DDA089C8D1E ~	TT7010~	IS$$406087347361908 ~	5921525		1		TT7010
27UEIRL U 55	15.88	6.50	9.00	4.0	2.8	27.00	0.81	1.2	13.7	T ~	71DDA089C8D1E ~	TT7010~	~	5922249		1		TT7010
