TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

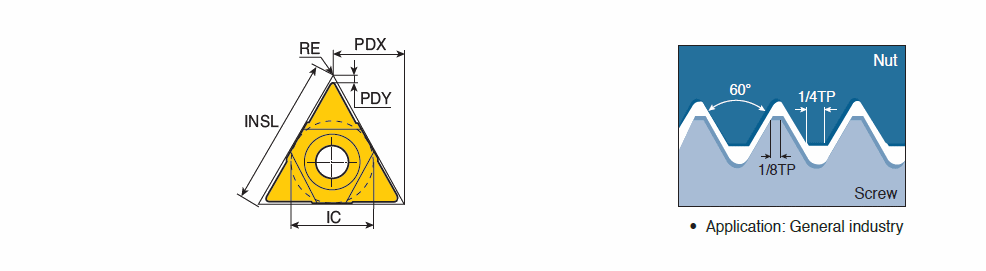

UERL-ISO : External ISO metric full profile thread U-type threading inserts

Designation	IC	TP	INSL	RE	PDY	PDX	SC	ClssID	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
22UERL 5.50 ISO	12.70	5.50	22.00	0.80	1.9	11.0	T ~	71DDA089C8D1E ~	TT7010~	IS$$150441238769928 ~	5921531	1	TT7010
22UERL 6.00 ISO	12.70	6.00	22.00	0.78	2.6	11.0	T ~	71DDA089C8D1E ~	TT7010~	IS$$150441238769928 ~	5921801	2	TT8010 TT7010
27UERL 8.00 ISO	15.88	8.00	27.00	1.08	2.4	13.7	T ~	71DDA089C8D1E ~	TT9030~	~	5922448	1	TT9030
