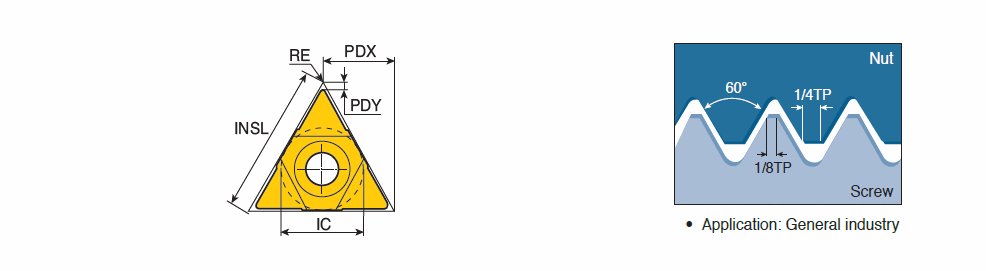

UIRL-UN : Internal American UN Full Profile (UN, UNC, UNF, UNEF) U- type threading inserts

Designation	IC	TPI	INSL	RE	PDY	PDX	SC	ClssID	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
08UIRL 13 UN	4.76	13.0	8.00	0.14	0.8	4.3	T ~	71DDA089C8D1E ~	TT9030~	IS$$58371066888192 ~	5922551		1		TT9030

Tolerance: Class 2B, ANSI B1, 3M-1986
