C*-HCLNR/L (RHINO) : C-ADAPTER Hook Lever RHINOTURN with 95° approach angle for CN.. 0904 inserts

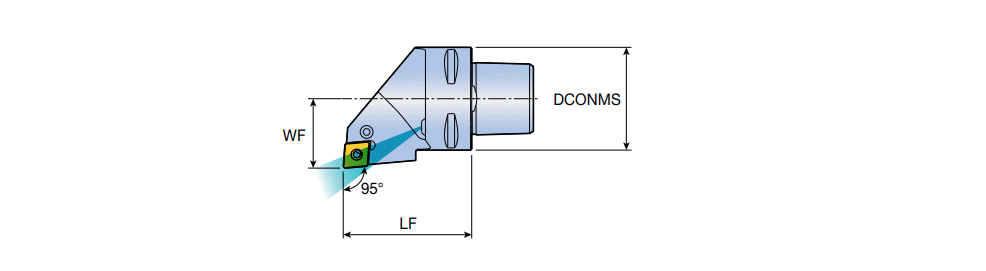

Right-hand shown

Designation	SS	f	LF	IC	t	CL	Tool typ	HAND	KAPR	Kr	ClssID	MIID	IIC	IIC_2	IIC_3	GICAT	GIREM	giic	GICODE
C4-HCLNL 27050-0904	40	27.00	50.00	9.52~	4.76~	HOOK LEVER ~	C-ADAPTER ~	L ~	95.0~	95~	71E01A0EAF067 ~	CNMG 090408 PC	IS$$1725095954716036 ~	IS$$1861966634141122 ~	IS$$1994863254591953 ~	6113076		0
C4-HCLNR 27050-0904	40	27.00	50.00	9.52~	4.76~	HOOK LEVER ~	C-ADAPTER ~	R ~	95.0~	95~	71E01A0EAF067 ~	CNMG 090408 PC	IS$$1725095954716036 ~	IS$$1861966634141122 ~	IS$$1994863254591953 ~	6113075		0
