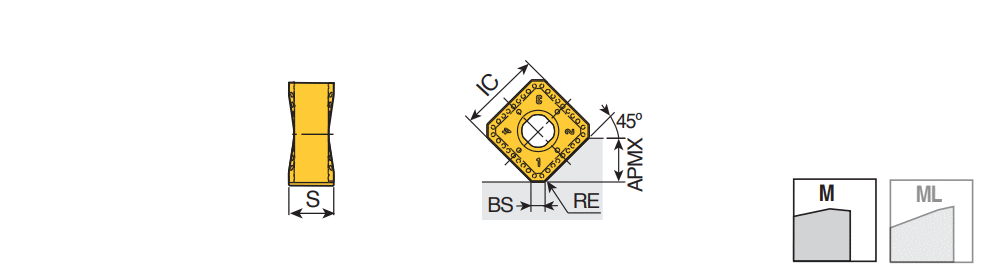

SNGX 1306 ANTN-M : Double-sided square inserts with 8 cutting edges for 45 face mills and general applications from roughing to finishing

Designation	IC	S	BS	RE	APMX	S1	W.link	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNGX 1306 ANTN-M	13.50	6.80	2.20	0.40	7.00	13.00~	20~	2.00	6.00	0.250	0.130	M8 ~	8~	C2Q-SN13A ~	S ~	~	G60 ~	~	8525B ~	IS$$365900588360370 ~	SNGX 13 ~	0~	6338324		5		TT8080 TT8525B TT7080 TT9080 TT6080

Click the Better Suggestions icon to see more choices.
