SNGX 1306 ANN-AL : Double-sided ground square inserts with polished top and 8 economical sharp cutting edges for aluminum machining in 45° face mills

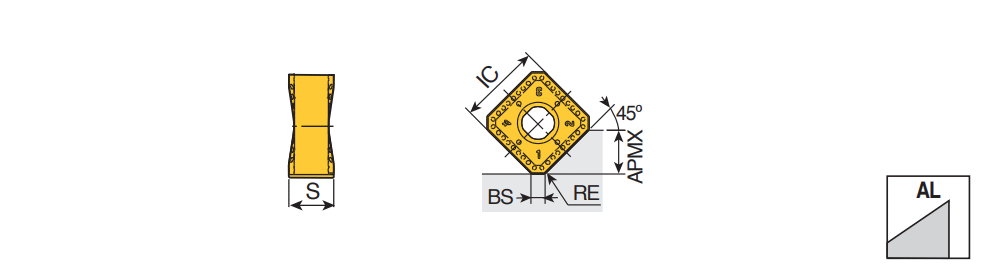

Designation	IC	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CBMD	ESP	GRDMFG	IIC	Pocket	W.link	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
SNGX 1306 ANN-AL	13.50	6.80	2.20	0.40	7.00	13.00~	8~	C2Q-SN13A ~	2.00	6.00	0.350	0.100	M4 ~	S ~	71DD68D829217 ~	AL ~	G10 ~	K10 ~	IS$$365900588360370 ~	SNGX 13 ~	20~	0~	5614734		1		K10
