Turning
Main Application

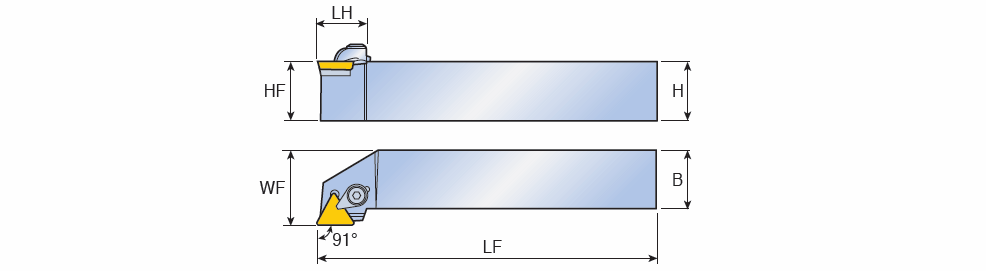

CTGPR/L : Top clamp holders with 91° approach angle for positive Triangular inserts of 11° clearance angle
Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC GICATGIREMgiicGICODE
  CTGPR 1212 F11 12.012.012.080.0019.016.006.35~3.18~0~91.0~Top Clamp ~SQUARE ~R ~71E01A0E85121 ~TPGN 110304 IS$$161906163272395 ~3600062 0
  CTGPR 1616 H11 16.016.016.0100.0018.020.006.35~3.18~0~91.0~Top Clamp ~SQUARE ~R ~71E01A0E85121 ~TPGN 110304 IS$$161906163272395 ~3600063 0
  CTGPL 2020 K16 20.020.020.0125.0025.025.009.52~3.18~0~91.0~Top Clamp ~SQUARE ~L ~71E01A0E85121 ~TPGN 160308 IS$$279074612382450 ~3600058 0
  CTGPR 2020 K11 20.020.020.0125.0019.025.006.35~3.18~0~91.0~Top Clamp ~SQUARE ~R ~71E01A0E85121 ~TPGN 110304 IS$$161906163272395 ~3600064 0
  CTGPR 2020 K16 20.020.020.0125.0025.025.009.52~3.18~0~91.0~Top Clamp ~SQUARE ~R ~71E01A0E85121 ~TPGN 160308 IS$$279074612382450 ~3600065 0
  CTGPL 2525 M16 25.025.025.0150.0025.032.009.52~3.18~0~91.0~Top Clamp ~SQUARE ~L ~71E01A0E85121 ~TPGN 160308 IS$$279074612382450 ~3600361 0
  CTGPR 2525 M16 25.025.025.0150.0025.032.009.52~3.18~0~91.0~Top Clamp ~SQUARE ~R ~71E01A0E85121 ~TPGN 160308 IS$$279074612382450 ~3600364 0
  CTGPR 2525 M22 25.025.025.0150.0030.032.0012.70~4.76~0~91.0~Top Clamp ~SQUARE ~R ~71E01A0E85121 ~TPGN 220408 IS$$51853338808544 ~3600366 0
  CTGPL 3232 P22 32.032.032.0170.0030.040.0012.70~4.76~0~91.0~Top Clamp ~SQUARE ~L ~71E01A0E85121 ~TPGN 220408 IS$$51853338808544 ~3600789 0
  CTGPR 3232 P22 32.032.032.0170.0030.040.0012.70~4.76~0~91.0~Top Clamp ~SQUARE ~R ~71E01A0E85121 ~TPGN 220408 IS$$51853338808544 ~3600790 0
