TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

SLOT 04 : Precision ground tangential inserts for slotting & grooving with 4 cutting edges in small diameter tools less than D63

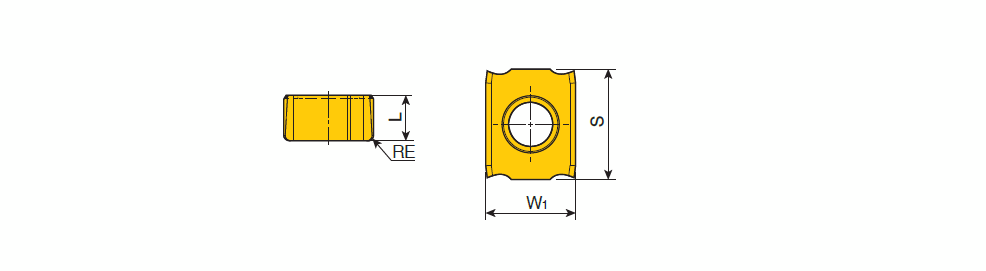

Designation	S	W1	L	RE	fz (max)	fz (min)	Insert	S1	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SLOT 018-04	8.00	6.50	1.80	0.40	0.080	0.050	~	18.00~	S ~	71DDA089C8D1E ~	4~	G50 ~	M ~	TT6080~	IS$$96862440817269 ~	SLOT 01 ~	0~	5615913	3	TT8080 TT9080 TT6080
SLOT 023-04	8.00	6.50	2.30	0.40	0.080	0.050	~	23.00~	S ~	71DDA089C8D1E ~	4~	G50 ~	M ~	TT6080~	IS$$96862559078634 ~	SLOT 02 ~	0~	5615916	3	TT8080 TT9080 TT6080
SLOT 028-04	8.00	6.50	2.80	0.40	0.080	0.050	~	28.00~	S ~	71DDA089C8D1E ~	4~	G50 ~	M ~	TT6080~	IS$$96867734346418 ~	SLOT 02 ~	0~	5615919	3	TT8080 TT9080 TT6080
SLOT 033-04	8.00	6.50	3.30	0.40	0.100	0.060	~	33.00~	S ~	71DDA089C8D1E ~	4~	G50 ~	M ~	TT6080~	IS$$96867896177528 ~	SLOT 03 ~	0~	5615922	3	TT8080 TT9080 TT6080
