Turning
Main Application

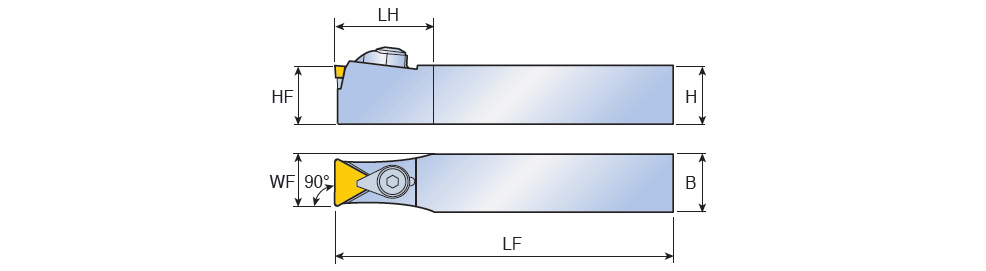

CTCPN : Top clamp holders facing with 90° approach angle for positive Triangular inserts of 11° clearance angle
Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC GICATGIREMgiicGICODE
  CTCPN 2009 K11 20.020.09.0125.0020.09.406.35~3.18~90~0.0~Top Clamp ~SQUARE ~ ~71E01A0E85121 ~TPGN 110304 IS$$161906163272395 ~3600035 0
  CTCPN 2513 Q16 25.025.013.0180.0030.014.109.52~3.18~90~0.0~Top Clamp ~SQUARE ~ ~71E01A0E85121 ~TPGN 160308 IS$$279074612382450 ~3600350 0
  CTCPN 2525 M22 25.025.025.0150.0050.019.4012.70~4.76~90~0.0~Top Clamp ~SQUARE ~ ~71E01A0E85121 ~TPGN 220408 IS$$51853338808544 ~3600352 0
