Turning
Main Application

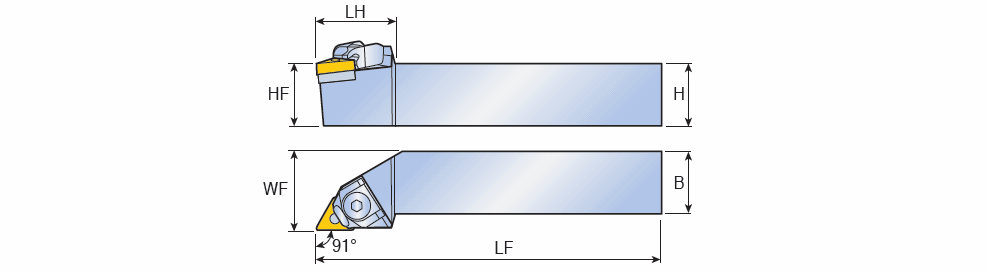

WTGNR/L : Wedge clamp holders with 91° approach angle for negative Triangular inserts
Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 IIC_3 GICATGIREMgiicGICODE
  WTGNL 2020 K16 20.020.020.0125.0032.025.009.52~4.76~0~91.0~Wedge Clamp ~SQUARE ~L ~71E01A0E85121 ~TNGA 160408 IS$$499577722031119 ~IS$$499578017563422 ~IS$$979311444151597 ~3600295 0
  WTGNR 2020 K16 20.020.020.0125.0032.025.009.52~4.76~0~91.0~Wedge Clamp ~SQUARE ~R ~71E01A0E85121 ~TNGA 160408 IS$$505657970253056 ~IS$$505658269163133 ~IS$$979311444151597 ~3600296 0
  WTGNL 2525 M16 25.025.025.0150.0032.032.009.52~4.76~0~91.0~Wedge Clamp ~SQUARE ~L ~71E01A0E85121 ~TNGA 160408 IS$$499577722031119 ~IS$$499578017563422 ~IS$$979311444151597 ~3600591 0
  WTGNL 2525 M22 25.025.025.0150.0038.032.0012.70~4.76~0~91.0~Wedge Clamp ~SQUARE ~L ~71E01A0E85121 ~TNGA 220408 IS$$237096026163220 ~IS$$415516365937120 ~ ~3600592 0
  WTGNR 2525 M16 25.025.025.0150.0032.032.009.52~4.76~0~91.0~Wedge Clamp ~SQUARE ~R ~71E01A0E85121 ~TNGA 160408 IS$$505657970253056 ~IS$$505658269163133 ~IS$$979311444151597 ~3600593 0
  WTGNR 2525 M22 25.025.025.0150.0038.032.0012.70~4.76~0~91.0~Wedge Clamp ~SQUARE ~R ~71E01A0E85121 ~TNGA 220408 IS$$217318716558844 ~IS$$227184725698585 ~IS$$415516365937120 ~3600594 0
  WTGNL 3232 P22 32.032.032.0170.0038.040.0012.70~4.76~0~91.0~Wedge Clamp ~SQUARE ~L ~71E01A0E85121 ~TNGA 220408 IS$$237096026163220 ~IS$$415516365937120 ~ ~6341262 0
  WTGNR 3232 P22 32.032.032.0170.0038.040.0012.70~4.76~0~91.0~Wedge Clamp ~SQUARE ~R ~71E01A0E85121 ~TNGA 220408 IS$$217318716558844 ~IS$$227184725698585 ~IS$$415516365937120 ~3601056 0
