TaeguTec Cutting Tools - Metal Working Tools - Turning -

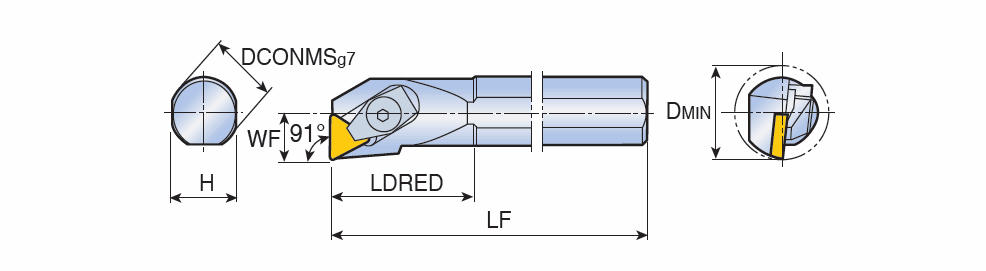

S-CTFCR/L : Top clamp boring bars for positive Triangular inserts of 7° clearance angle with 91° approach angle

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	MIID	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	IIC	GICAT	GIREM	giic	GICODE
S10K CTFCL 06	10.00	9.0	125.00	25.0	6.50	12.00	TPGN 060104	3.97~	1.59~	0~	91.0~	Top Clamp ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	IS$$35810364428980 ~	3601636		0
S10K CTFCR 06	10.00	9.0	125.00	25.0	6.50	12.00	TPGN 060104	3.97~	1.59~	0~	91.0~	Top Clamp ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	IS$$35810364428980 ~	6341169		0
