TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

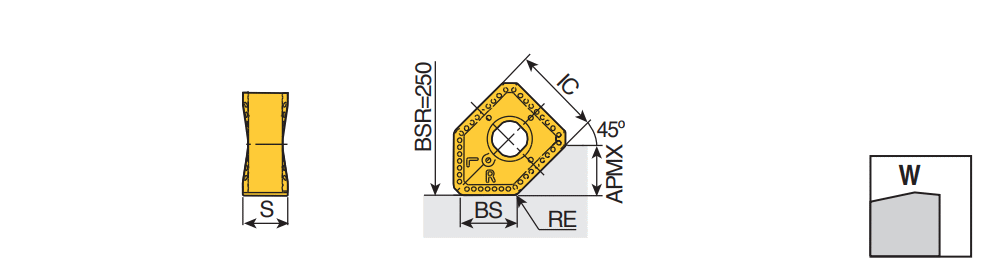

SNGX 1306 ANTN-W : Ground wiper inserts with 2 right-handed & 2 left-handed cutting edges for 45° face mills

Designation	IC	S	BS	RE	APMX	S1	W.link	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNGX 1306 ANTN-W	13.50	6.80	7.50	1.20	1.00	13.00~	20~	0.03	1.00	0.200	0.100	M6 ~	2~	C2Q-SN13A ~	S ~	71DD68D829217 ~	G30 ~	W ~	TT6080~	IS$$365900588360370 ~	SNGX 13 ~	0~	5614733		2		TT9080 TT6080
