Turning
Main Application

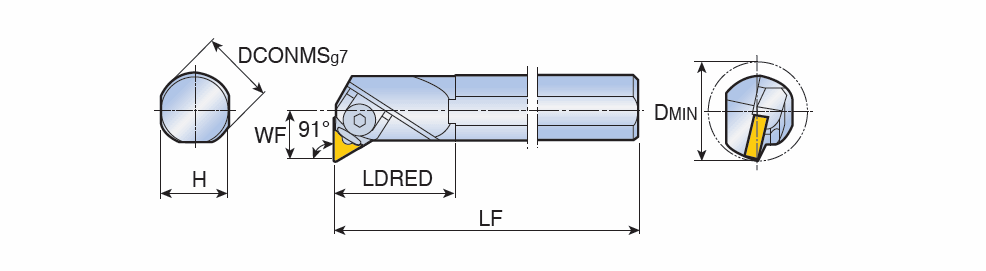

S-WTFNR/L : Wedge clamp boring bars for negative Triangular inserts with 91° approach angle
Right-hand shown

Right-hand shown

  DesignationDCONMS H LF LDRED WF DMIN IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 IIC_3 GICATGIREMgiicGICODE
  S25T WTFNL 16 25.0023.0300.0050.017.0032.009.52~4.76~0~91.0~Wedge Clamp ~BORING BAR ~L ~71E01A0E9CBA9 ~TNGA 160408 IS$$505657970253056 ~IS$$505658269163133 ~IS$$979311444151597 ~3601609 0
  S25T WTFNR 16 25.0023.0300.0050.017.0032.009.52~4.76~0~91.0~Wedge Clamp ~BORING BAR ~R ~71E01A0E9CBA9 ~TNGA 160408 IS$$499577722031119 ~IS$$499578017563422 ~IS$$979311444151597 ~3601274 0
  S32T WTFNL 16 32.0030.0300.0055.022.0040.009.52~4.76~0~91.0~Wedge Clamp ~BORING BAR ~L ~71E01A0E9CBA9 ~TNGA 160408 IS$$505657970253056 ~IS$$505658269163133 ~IS$$979311444151597 ~3604869 0
  S32T WTFNR 16 32.0030.0300.0055.022.0040.009.52~4.76~0~91.0~Wedge Clamp ~BORING BAR ~R ~71E01A0E9CBA9 ~TNGA 160408 IS$$499577722031119 ~IS$$499578017563422 ~IS$$979311444151597 ~3604867 0
  S40T WTFNR 16 40.0037.0300.0060.027.0050.009.52~4.76~0~91.0~Wedge Clamp ~BORING BAR ~R ~71E01A0E9CBA9 ~TNGA 160408 IS$$499577722031119 ~IS$$499578017563422 ~IS$$979311444151597 ~3604913 0
  S40T WTFNR 22 40.0037.0300.0060.027.0050.0012.70~4.76~0~91.0~Wedge Clamp ~BORING BAR ~R ~71E01A0E9CBA9 ~TNGA 220408 IS$$237096026163220 ~IS$$415516365937120 ~ ~3604914 0
  S50U WTFNR 22 50.0047.0350.0065.035.0063.0012.70~4.76~0~91.0~Wedge Clamp ~BORING BAR ~R ~71E01A0E9CBA9 ~TNGA 220408 IS$$237096026163220 ~IS$$415516365937120 ~ ~3604951 0
