TaeguTec Cutting Tools - Metal Working Tools - Turning -

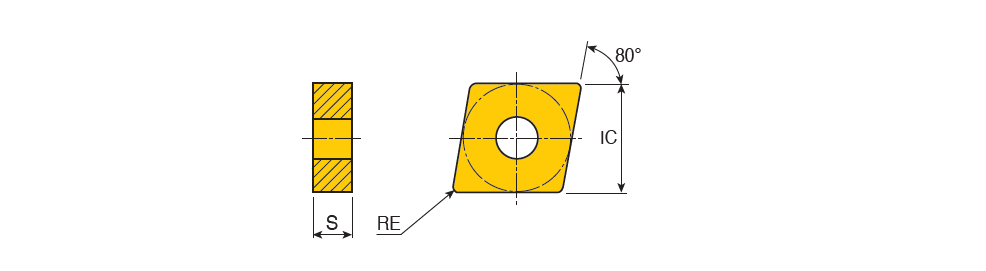

CNMG-KT : Negative 80° Rhombic inserts for roughing on cast irons and good tool life on interrupted conditions

Designation	IC	S	RE	S1	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 120408 KT	12.70	4.76	0.80	12.00~	KT ~	80~	0.00~	0.38	7.00	0.19	0.53	4~	~	U ~	12.90~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204082NB$$08 ~	432 KT ~	CNMG ~	Y ~	12 ~	6212832	4	TT8115B TT7025 TT7015 TT7005
CNMG 120412 KT	12.70	4.76	1.20	12.00~	KT ~	80~	0.00~	0.50	7.00	0.25	0.70	4~	~	U ~	12.90~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1204122NB$$12 ~	433 KT ~	CNMG ~	Y ~	12 ~	6186040	3	TT7025 TT7015 TT7005
CNMG 120416 KT	12.70	4.76	1.60	12.00~	KT ~	80~	0.00~	0.75	7.00	0.28	0.85	4~	~	U ~	12.90~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1204162NB$$16 ~	434 KT ~	CNMG ~	Y ~	12 ~	6198233	3	TT7025 TT7015 TT7005
CNMG 160612 KT	15.88	6.35	1.20	16.00~	KT ~	80~	0.00~	0.80	9.00	0.25	0.75	4~	~	U ~	16.17~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1606122NB$$12 ~	543 KT ~	CNMG ~	Y ~	16 ~	6125453	2	TT7015 TT7005
CNMG 160616 KT	15.88	6.35	1.60	16.00~	KT ~	80~	0.00~	1.00	9.00	0.30	0.85	4~	~	U ~	16.17~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1606162NB$$16 ~	544 KT ~	CNMG ~	Y ~	16 ~	6125454	2	TT7015 TT7005
CNMG 190612 KT	19.05	6.35	1.20	19.00~	KT ~	80~	0.00~	1.00	14.00	0.25	0.75	4~	~	U ~	19.30~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1906122NB$$12 ~	643 KT ~	CNMG ~	Y ~	19 ~	6154166	2	TT7015 TT7005
CNMG 190616 KT	19.05	6.35	1.60	19.00~	KT ~	80~	0.00~	1.50	14.00	0.30	0.85	4~	~	U ~	19.30~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1906162NB$$16 ~	644 KT ~	CNMG ~	Y ~	19 ~	6154167	2	TT7015 TT7005
