TaeguTec Cutting Tools - Metal Working Tools - Turning -

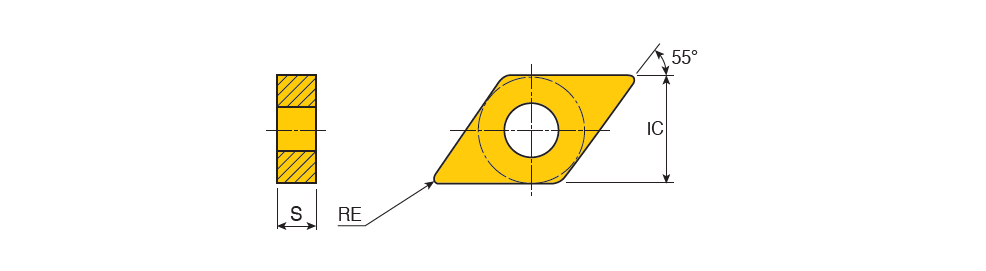

DNMG-ET : Negative 55° Rhombic inserts for rough machining of exotic materials

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNMG 150408 ET	12.70	4.76	0.80	15.50~	ET ~	55~	0.00~	1.00	6.00	0.20	0.60	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	TT5080~	2~	ISO$DN1504082NB$$08 ~	432 ET ~	DNMG ~	Y ~	15 ~	6112237	5	TT9235 TT9080 TT9225 TT5080 TT9215
DNMG 150412 ET	12.70	4.76	1.20	15.50~	ET ~	55~	0.00~	1.00	6.00	0.25	0.60	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	TT5080~	2~	ISO$DN1504122NB$$12 ~	433 ET ~	DNMG ~	Y ~	15 ~	6112246	4	TT9080 TT9225 TT5080 TT9215
DNMG 150608 ET	12.70	6.35	0.80	15.50~	ET ~	55~	0.00~	1.00	6.00	0.20	0.60	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	TT3010~	2~	ISO$DN1506082NB$$08 ~	442 ET ~	DNMG ~	Y ~	15 ~	6336773	7	TT9235 TT9080 TT9225 TT3020 TT3010 TT5080 TT9215
DNMG 150612 ET	12.70	6.35	1.20	15.50~	ET ~	55~	0.00~	1.00	6.00	0.25	0.60	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	TT3010~	2~	ISO$DN1506122NB$$12 ~	443 ET ~	DNMG ~	Y ~	~	6336775	7	TT9235 TT9080 TT9225 TT3020 TT3010 TT5080 TT9215
