TaeguTec Cutting Tools - Metal Working Tools - Turning -

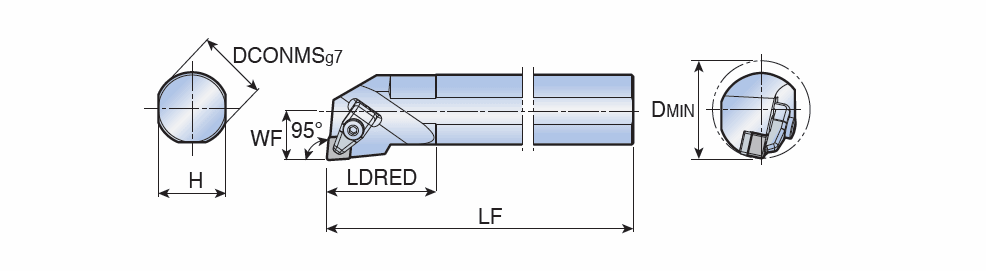

S-TCLNR/L-CH : T-holder boring bars for negative 80° Rhombic Ceramic CH Dimple inserts with 95° approach angle

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT
S40T TCLNL 1207-CH	40.00	37.0	300.00	50.0	27.00	70.00	12.70~	7.94~	95~	95.0~	T-HOLDER (CH) ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CNGX 120712 CH	IS$$202855555795290 ~	3604922
S40T TCLNR 1207-CH	40.00	37.0	300.00	50.0	27.00	70.00	12.70~	7.94~	95~	95.0~	T-HOLDER (CH) ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CNGX 120712 CH	IS$$202855555795290 ~	3604921
S50U TCLNR 1207-CH	50.00	47.0	350.00	50.0	32.00	70.00	12.70~	7.94~	95~	95.0~	T-HOLDER (CH) ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CNGX 120712 CH	IS$$202855555795290 ~	3604953
