TaeguTec Cutting Tools - Metal Working Tools - Turning -

SNMG-KT : Negative Square inserts for roughing of cast irons and good tool life on interrupted conditions

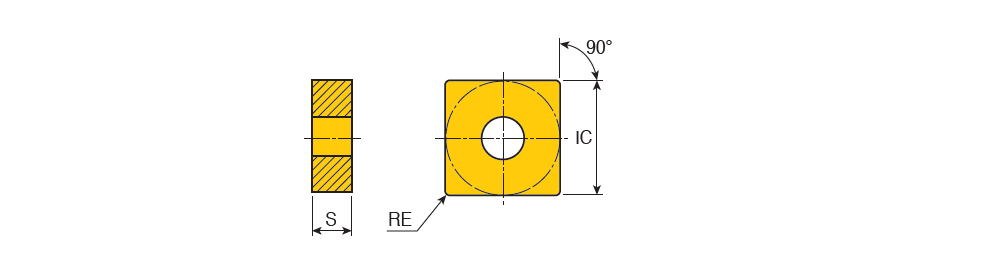

Designation	IC	S	RE	S1	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 120408 KT	12.70	4.76	0.80	12.00~	KT ~	90~	0.00~	0.38	7.00	0.19	0.53	8~	~	U ~	12.70~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	ISO$SN1204082NB$$08 ~	432 KT ~	SNMG ~	Y ~	12 ~	6189120	3	TT7025 TT7015 TT7005
SNMG 120412 KT	12.70	4.76	1.20	12.00~	KT ~	90~	0.00~	0.50	7.00	0.28	0.70	8~	~	U ~	12.70~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	ISO$SN1204122NB$$12 ~	433 KT ~	SNMG ~	Y ~	12 ~	6189121	3	TT7025 TT7015 TT7005
SNMG 120416 KT	12.70	4.76	1.60	12.00~	KT ~	90~	0.00~	0.75	7.00	0.30	0.75	8~	~	U ~	12.70~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	ISO$SN1204162NB$$16 ~	434 KT ~	SNMG ~	Y ~	12 ~	6154168	2	TT7015 TT7005
SNMG 150612 KT	15.88	6.35	1.20	15.00~	KT ~	90~	0.00~	0.60	8.50	0.30	0.75	8~	~	U ~	15.88~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	ISO$SN1506122NB$$12 ~	543 KT ~	SNMG ~	Y ~	15 ~	6154169	2	TT7015 TT7005
SNMG 150616 KT	15.88	6.35	1.60	15.00~	KT ~	90~	0.00~	0.90	8.50	0.30	0.85	8~	~	U ~	15.88~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	ISO$SN1506162NB$$16 ~	544 KT ~	SNMG ~	Y ~	15 ~	6154170	2	TT7015 TT7005
SNMG 190616 KT	19.05	6.35	1.60	19.00~	KT ~	90~	0.00~	1.30	12.00	0.30	0.85	8~	~	U ~	19.05~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	ISO$SN1906162NB$$16 ~	644 KT ~	SNMG ~	Y ~	19 ~	6154171	2	TT7015 TT7005
