TaeguTec Cutting Tools - Metal Working Tools - Turning -

TNMG-KT : Negative 60° Triangular inserts for roughing of cast irons and good tool life on interrupted conditions

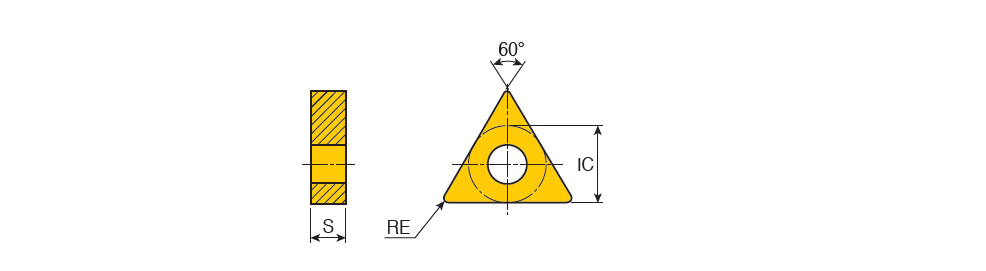

Designation	IC	S	RE	S1	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 160408 KT	9.52	4.76	0.80	0.00~	KT ~	60~	0.00~	0.34	6.20	0.17	0.42	6~	~	U ~	16.50~	T ~	71DD68D8446CE ~	CVD ~	TT7005~	2~	ISO$TN1604082NB$$08 ~	332 KT ~	TNMG ~	Y ~	16 ~	6190341	3	TT7025 TT7015 TT7005
TNMG 160412 KT	9.52	4.76	1.20	0.00~	KT ~	60~	0.00~	0.45	6.30	0.20	0.56	6~	~	U ~	16.50~	T ~	71DD68D8446CE ~	CVD ~	TT7005~	2~	ISO$TN1604122NB$$12 ~	333 KT ~	TNMG ~	Y ~	16 ~	6315662	3	TT7025 TT7015 TT7005
TNMG 220408 KT	12.70	4.76	0.80	0.00~	KT ~	60~	0.00~	0.38	7.00	0.19	0.53	6~	~	U ~	22.00~	T ~	71DD68D8446CE ~	CVD ~	TT7005~	2~	ISO$TN2204082NB$$08 ~	432 KT ~	TNMG ~	Y ~	22 ~	6105488	2	TT7015 TT7005
TNMG 220412 KT	12.70	4.76	1.20	0.00~	KT ~	60~	0.00~	0.50	7.00	0.25	0.70	6~	~	U ~	22.00~	T ~	71DD68D8446CE ~	CVD ~	TT7005~	2~	ISO$TN2204122NB$$12 ~	433 KT ~	TNMG ~	Y ~	22 ~	6105490	2	TT7015 TT7005
