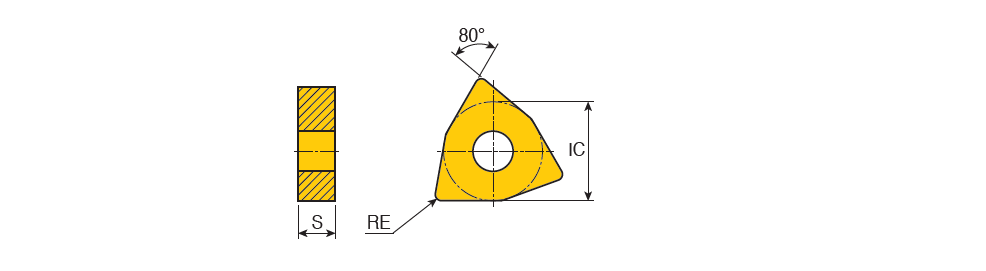

WNMG-KT : Negative 80° Trigon inserts for roughing of cast irons with good tool life on interrupted conditions

Designation	IC	S	RE	S1	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 080408 KT	12.70	4.76	0.80	8.00~	KT ~	80~	0.00~	0.29	5.50	0.17	0.47	6~	~	U ~	8.70~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804082NB$$08 ~	432 KT ~	WNMG ~	Y ~	8 ~	6242840	4	TT8115B TT7025 TT7015 TT7005
WNMG 080412 KT	12.70	4.76	1.20	8.00~	KT ~	80~	0.00~	0.39	5.50	0.23	0.63	6~	~	U ~	8.70~	W ~	71DD68D73218C ~	CVD ~	TT7005~	2~	ISO$WN0804122NB$$12 ~	433 KT ~	WNMG ~	Y ~	8 ~	6186055	3	TT7025 TT7015 TT7005
WNMG 080416 KT	12.70	4.76	1.60	8.00~	KT ~	80~	0.00~	0.50	5.50	0.25	0.60	6~	~	U ~	8.70~	W ~	71DD68D73218C ~	CVD ~	TT7005~	2~	ISO$WN0804162NB$$16 ~	434 KT ~	WNMG ~	Y ~	8 ~	6153997	2	TT7015 TT7005
