TaeguTec Cutting Tools - Metal Working Tools - Turning -

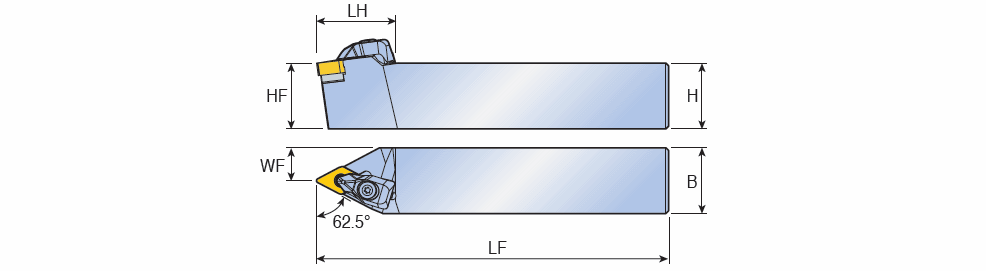

TDNNR/L... : T-holders with 62.5° approach angle for negative 55° Rhombic inserts

Right-hand shown

Designation	HF	H	B	LF	LH	WF	MIID	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	IIC	IIC_2	GICAT	GIREM	giic	GICODE
TDNNL 2525 M11	25.0	25.0	25.0	150.00	30.0	12.50	DNMA 110408	9.52~	4.76~	60~	63.0~	T-HOLDER ~	SQUARE ~	L ~	71E01A0E85121 ~	IS$$567394293143920 ~	IS$$612474122530520 ~	3605212		0
TDNNR 2525 M11	25.0	25.0	25.0	150.00	30.0	12.50	DNMA 110408	9.52~	4.76~	60~	63.0~	T-HOLDER ~	SQUARE ~	R ~	71E01A0E85121 ~	IS$$567394293143920 ~	IS$$612474122530520 ~	3602527		0
