TaeguTec Cutting Tools - Metal Working Tools - Turning -

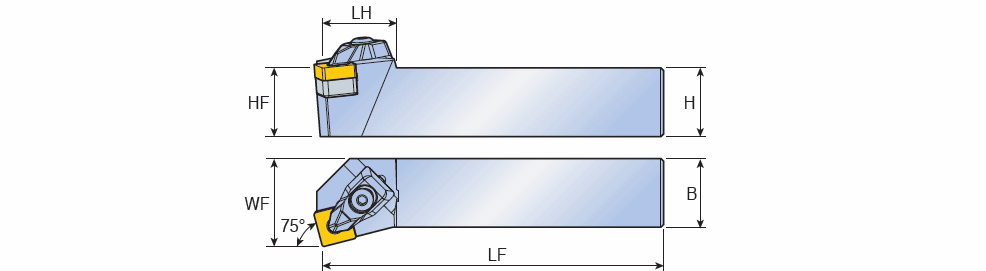

TSKNR/L... : T-holders facing with 75° approach angle for negative Square inserts

Right-hand shown

Designation	HF	H	B	LF	LH	WF	MIID	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	IIC	GICAT	GIREM	giic	GICODE
TSKNL 2525 M12	25.0	25.0	25.0	150.00	27.0	32.00	SNGA 120408	12.70~	4.76~	75~	0.0~	T-HOLDER ~	SQUARE ~	L ~	71E01A0E85121 ~	IS$$636327546754572 ~	3602887		0
TSKNR 2525 M12	25.0	25.0	25.0	150.00	27.0	32.00	SNGA 120408	12.70~	4.76~	75~	0.0~	T-HOLDER ~	SQUARE ~	R ~	71E01A0E85121 ~	IS$$636327546754572 ~	3602534		0
