TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

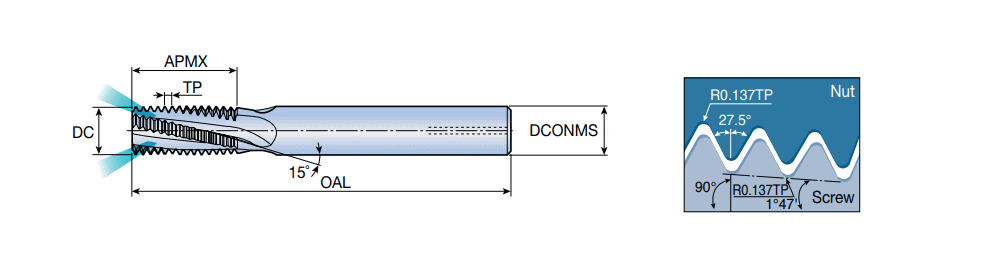

MTECZ-BSPT : Solid carbide threading endmills with coolant holes located in the flutes, used for internal or external BSPT thread profile.

Designation	S1	TPI	TDZ	DCONMS	DC	APMX	OAL	NOF	HAND	CCMS	CZCMS	fz (max)	fz (min)	LF	LTA	Shank	THFT	TP	TTP		ZAX	GRDMFG	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
MTECZ08078C14 28BSPT	1.00~	28.0	RC1/8	8.00	7.80	14.10	64.00	3	R ~	8000 ~	8000 ~	0.090~	0.030~	999.00~	52.00~	C ~	BSPT55 ~	0.91~	BOTH ~	0.04~	15~	TT9030~	6346360		1		TT9030
MTECZ 1010D16 19BSPT	2.00~	19.0	RC1/4-3/8	10.00	10.00	16.70	73.00	4	R ~	1000 ~	1000 ~	0.110~	0.030~	999.00~	0.00~	C ~	BSPT55 ~	1.34~	BOTH ~	0.07~	12~	TT9030~	6342585		1		TT9030
