TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

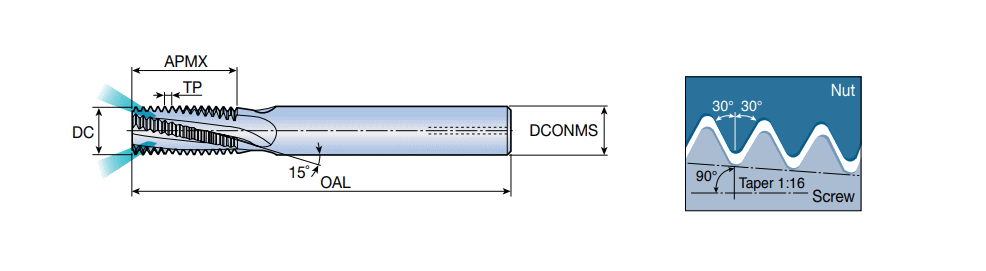

MTECZ-NPT : Solid carbide threading endmills with coolant holes located in the flutes, used for internal or external NPT thread profile.

Designation	TPI	TDZ	DCONMS	DC	APMX	OAL	NOF	KAPR	HAND	0	Shank	LTA	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MTECZ 16155D22 14NPT	14.0	1/2-3/4	16.00	15.50	22.70	101.00	4	0.0~	~	~	C ~	53.00~	TT9030~	6346395	1	TT9030
MTECZ 1010D16 18NPT	18.0	1/4-3/8	10.00	10.00	16.20	73.00	4	0.0~	~	~	C ~	58.00~	TT9030~	6346394	1	TT9030
MTECZ 08076C10 27NPT	27.0	1/8	8.00	7.60	10.80	64.00	3	0.0~	~	~	C ~	52.00~	TT9030~	6346358	1	TT9030
