TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

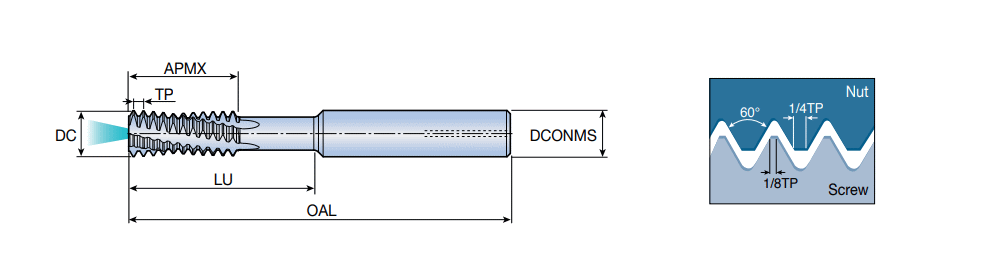

MTECQ-UN : Solid carbide internal threading end mills with coolant holes & reduced diameter neck for deep internal UM threads

Designation	S1	TPI	TDZ	DCONMS	DC	APMX	LU	OAL	NOF	KAPR	HAND	0	0	Insert	Shank	LTA	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MTECQ 1010D30 20UN	10.00~	20.0	>=12	10.00	10.00	17.80	30.5	73.00	4	0.0~	~	~	~	~	C ~	33.00~	TT9030~	6346327	1	TT9030
MTECQ 1616F43 20UN	40.00~	20.0	>=18	16.00	16.00	25.40	43.2	105.00	6	0.0~	~	~	~	~	C ~	57.00~	TT9030~	6346339	1	TT9030
MTECQ 1616E42 16UN	50.00~	16.0	>=19	16.00	16.00	25.40	42.9	105.00	5	0.0~	~	~	~	~	C ~	57.00~	TT9030~	6346336	1	TT9030
MTECQ 1212D42 12UN	60.00~	12.0	>=16	12.00	12.00	25.40	42.3	84.00	4	0.0~	~	~	~	~	C ~	0.00~	TT9030~	6346332	1	TT9030
