Home Page > Thread Making > > TMTSRH (endmills)

Thread Making
Main Application

Related Insert Related Holder

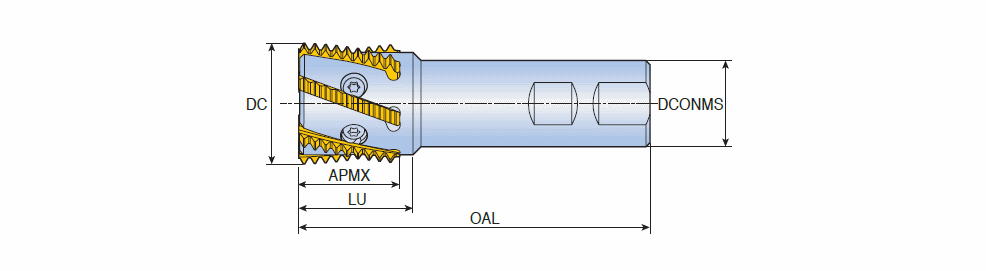

TMTSRH (endmills) : End mills with coolant holes for helical threading inserts

Designation	NOF	APMX	DC	DCONMS	LU	OAL	HAND	ClssID	BD	CCMS	CICT		CZCMS	fz (max)	fz (min)	LF	LTA	Shank	TPN	TPX	TTP	TTP_DF2		ZADJ	IIC	GICAT	GIREM	giic	GICODE
TMTSRH 32-5-N	5	32.00	32.00	32.00	60.00	130.00	~	71EF07E083383 ~	-~	3200 ~	5~	Y ~	3200 ~	0.150~	0.050~	130.00~	70.00~	W ~	-~	-~	INT ~	EXT ~	0.65~	999~	IS$$96248524205120 ~	6240325		0
