TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

MTFLE D : External multi-insert threading shell mills

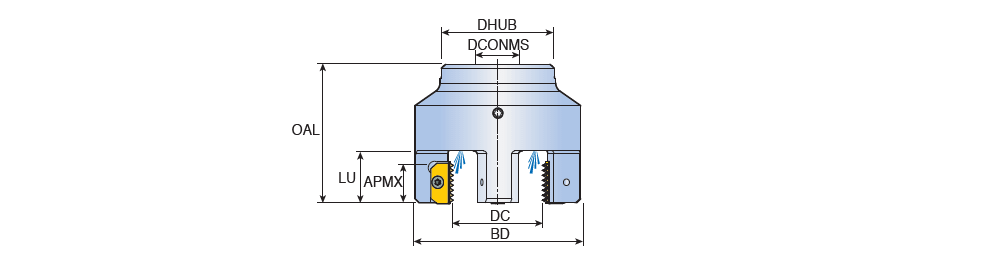

Designation	DC	CICT	APMX	DCX	DHUB	DCONMS	LU	OAL		ClssID	BD	CCMS		fz (max)	fz (min)	LTA	IIC	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	GICAT
MTFLE D20-3-22-21	20.00	3	21.00	58.20	48.00	22.00	27.00	63.00	0.70	71EF07E083383 ~	58.20~	~	~	999.000~	999.000~	0.00~	IS$$309353483966000 ~	IS$$309444800505875 ~	IS$$347756174535246 ~	IS$$386169010278006 ~	IS$$386193978996895 ~	IS$$424528933298913 ~	6309453
MTFLE D30-3-22-21	30.00	3	21.00	68.20	48.00	22.00	27.00	63.00	0.90	71EF07E083383 ~	68.20~	~	~	999.000~	999.000~	0.00~	IS$$309353483966000 ~	IS$$309444800505875 ~	IS$$347756174535246 ~	IS$$386169010278006 ~	IS$$386193978996895 ~	IS$$424528933298913 ~	6309454
MTFLE D45-4-27-21	45.00	4	21.00	83.20	60.00	27.00	27.00	67.00	1.40	71EF07E083383 ~	83.20~	~	~	999.000~	999.000~	0.00~	IS$$309353483966000 ~	IS$$309444800505875 ~	IS$$347756174535246 ~	IS$$386169010278006 ~	IS$$386193978996895 ~	IS$$424528933298913 ~	6309455

All shell mills are equipped with a bore for internal coolant
