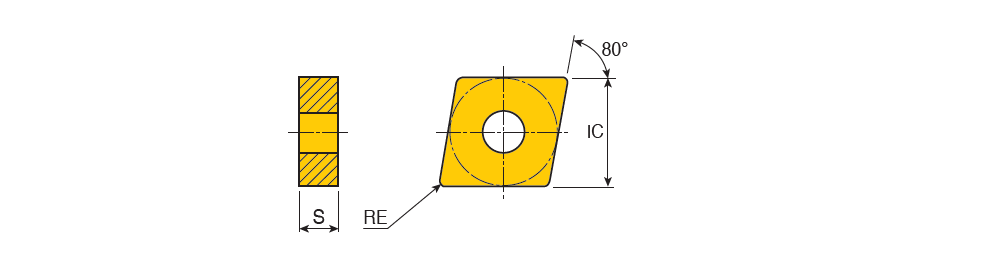

CNGG-ML : Negative ground 80° Rhombic inserts for machining of aluminum and exotic materials

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNGG 120401 ML	12.70	4.76	0.10	12.80~	ML ~	80~	0.00~	0.10	3.50	0.03	0.10	4~	P ~	~	C ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$CN1204012NB$$01 ~	430 ML ~	CNGG ~	Y ~	12 ~	6185991	3	TT9080 TT5080 K10
CNGG 120402 ML	12.70	4.76	0.20	12.70~	ML ~	80~	0.00~	0.20	3.50	0.05	0.15	4~	P ~	~	C ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$CN1204022NB$$02 ~	430.5 ~	CNGG ~	Y ~	12 ~	6185992	3	TT9080 TT5080 K10
CNGG 120404 ML	12.70	4.76	0.40	12.40~	ML ~	80~	0.00~	0.80	3.50	0.10	0.30	4~	P ~	~	C ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$CN1204042NB$$04 ~	431 ML ~	CNGG ~	Y ~	12 ~	6185993	3	TT9080 TT5080 K10
CNGG 120408 ML	12.70	4.76	0.80	12.00~	ML ~	80~	0.00~	1.00	3.50	0.12	0.35	4~	P ~	~	C ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$CN1204082NB$$08 ~	432 ML ~	CNGG ~	Y ~	12 ~	6185994	4	TT8020 TT9080 TT5080 K10
