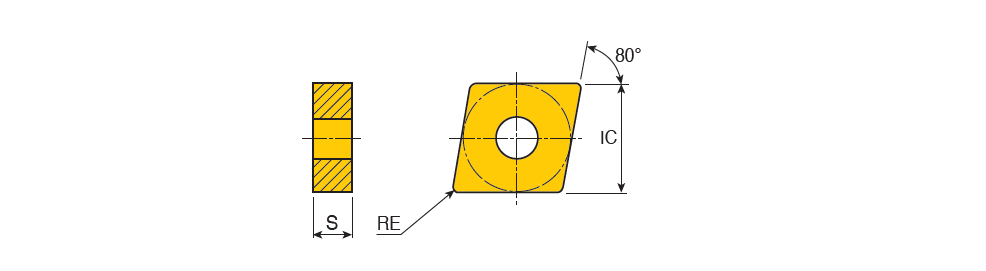

CNMG-FA : Negative 80° Rhombic inserts for super-finishing on steels, stainless steels & heat resistant alloys with excellent chip control

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 120404 FA	12.70	4.76	0.40	12.40~	FA ~	80~	0.00~	0.20	2.00	0.05	0.20	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204042NB$$04 ~	431 FA ~	CNMG ~	Y ~	12 ~	6241933		3		TT5100 TT8125B TT8115B
CNMG 120408 FA	12.70	4.76	0.80	12.90~	FA ~	80~	0.00~	0.30	2.00	0.05	0.25	4~	~	U ~	C ~	71DD68D301C30 ~	Cermet ~	8125B ~	2~	ISO$CN1204082NB$$08 ~	432 FA ~	CNMG ~	Y ~	12 ~	6212278		2		TT8125B CT3000
