TaeguTec Cutting Tools - Metal Working Tools - Turning -

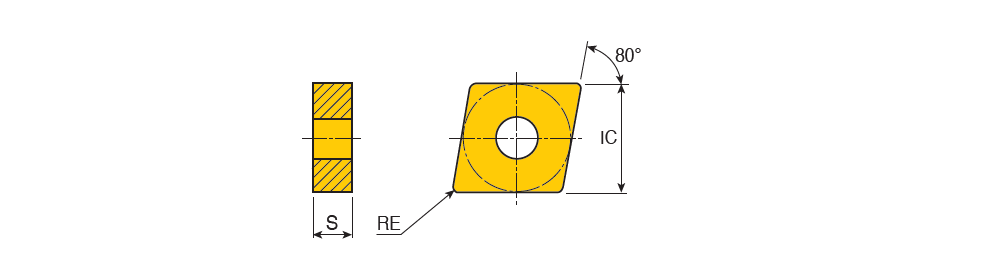

CNMG-SF : Negative 80° Rhombic inserts for finishing of stainless steel & heat resistant alloy

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 120404 SF	12.70	4.76	0.40	12.90~	SF ~	80~	0.00~	0.50	1.50	0.08	0.25	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	TT5080~	2~	ISO$CN1204042NB$$04 ~	431 SF ~	CNMG ~	Y ~	12 ~	6112143		4		TT8020 TT9080 TT5100 TT5080
CNMG 120408 SF	12.70	4.76	0.80	12.90~	SF ~	80~	0.00~	0.70	1.50	0.10	0.30	4~	~	U ~	C ~	71DD68D301C30 ~	Cermet ~	8115B ~	2~	ISO$CN1204082NB$$08 ~	432 SF ~	CNMG ~	Y ~	12 ~	6212505		6		TT8020 TT5100 TT8125B TT5080 TT8115B CT3000
