TaeguTec Cutting Tools - Metal Working Tools - Turning -

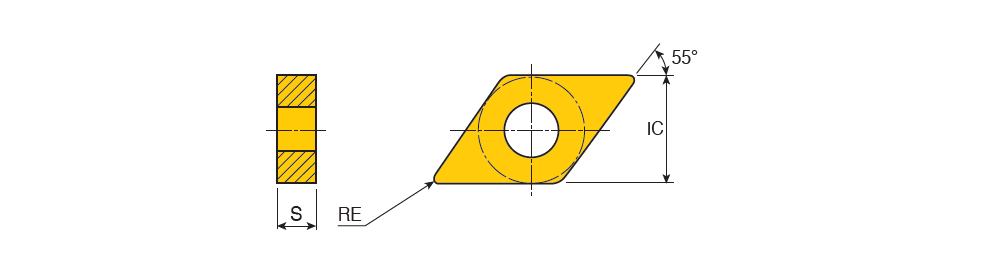

DNGG-ML : Negative ground 55° Rhombic inserts for machining of aluminum and exotic materials

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNGG 150401 ML	12.70	4.76	0.10	15.50~	ML ~	55~	0.00~	0.10	1.00	0.03	0.10	4~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$DN1504012NB$$01 ~	430 ML ~	DNGG ~	Y ~	15 ~	5523190	2	TT5080 K10
DNGG 150402 ML	12.70	4.76	0.20	15.50~	ML ~	55~	0.00~	0.20	1.20	0.05	0.15	4~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$DN1504022NB$$02 ~	430.5 ~	DNGG ~	Y ~	15 ~	5523191	2	TT5080 K10
DNGG 150404 ML	12.70	4.76	0.40	15.50~	ML ~	55~	0.00~	0.80	3.50	0.10	0.30	4~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$DN1504042NB$$04 ~	431 ML ~	DNGG ~	Y ~	15 ~	5523124	2	TT5080 K10
DNGG 150408 ML	12.70	4.76	0.80	15.50~	ML ~	55~	0.00~	1.00	3.50	0.12	0.35	4~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$DN1504082NB$$08 ~	432 ML ~	DNGG ~	Y ~	15 ~	5523114	2	TT5080 K10
