DCGW-CBN : Positive 55° Rhombic inserts with CBN tips for finishing of hardened steels & cast irons

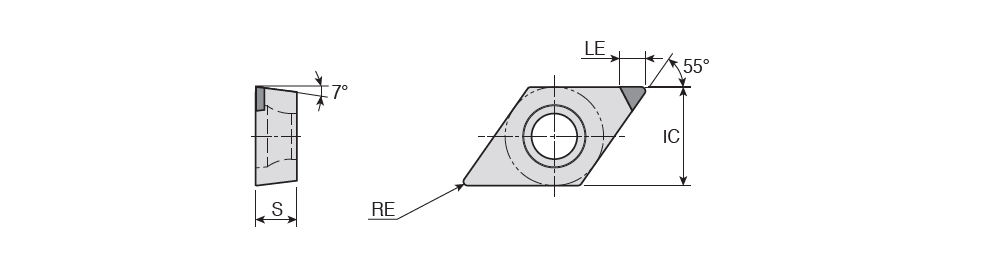

Designation	IC	S	RE	LE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DCGW 070202 LS	6.35	2.38	0.20	2.60	55~	7.00~	0.05	0.50	0.05	0.30	1~	P ~	~	7.70~	D ~	71DD68D301C30 ~	CBN ~	TB650 ~	3~	ISO$DC0702023NA$$02 ~	21.50. ~	DCGW ~	Y ~	7 ~	5400908	1	TB650
DCGW 070202 LS2	6.35	2.38	0.20	2.60	55~	7.00~	0.05	0.50	0.05	0.30	2~	P ~	~	7.70~	D ~	71DD68D301C30 ~	CBN ~	TB610 ~	3~	ISO$DC0702023NA$$02 ~	21.50. ~	DCGW ~	Y ~	7 ~	5403136	3	TB730 TB670 TB610
DCGW 070204 LS	6.35	2.38	0.40	2.40	55~	7.00~	0.05	0.50	0.05	0.30	1~	P ~	~	7.70~	D ~	71DD68D301C30 ~	CBN ~	TB650 ~	3~	ISO$DC0702043NA$$04 ~	21.51 ~	DCGW ~	Y ~	~	6210519	2	TB7015 TB650
DCGW 070204 LS2	6.35	2.38	0.40	2.40	55~	7.00~	0.05	0.50	0.05	0.30	2~	P ~	~	7.70~	D ~	71DD68D301C30 ~	CBN ~	TB610 ~	3~	ISO$DC0702043NA$$04 ~	21.51 ~	DCGW ~	Y ~	7 ~	5403137	3	TB730 TB670 TB610
DCGW 070208 LS2	6.35	2.38	0.80	2.60	55~	7.00~	0.05	0.50	0.05	0.30	2~	P ~	~	7.70~	D ~	71DD68D301C30 ~	CBN ~	TB730 ~	3~	ISO$DC0702083NA$$08 ~	21.52 ~	DCGW ~	Y ~	7 ~	5403138	1	TB730
DCGW 11T304 LS	9.52	3.97	0.40	2.60	55~	7.00~	0.05	0.50	0.05	0.30	1~	P ~	~	11.60~	D ~	71DD68D301C30 ~	CBN ~	TB650 ~	3~	ISO$DC11T3043NA$$04 ~	32.51 ~	DCGW ~	Y ~	11 ~	6210521	2	TB7015 TB650
DCGW 11T304 LS2	9.52	3.97	0.40	3.40	55~	7.00~	0.05	0.50	0.05	0.30	2~	P ~	~	11.60~	D ~	71DD68D301C30 ~	CBN ~	TB610 ~	3~	ISO$DC11T3043NA$$04 ~	32.51 ~	DCGW ~	Y ~	11 ~	5403139	3	TB730 TB670 TB610
DCGW 11T304 LS2-SL	9.52	3.97	0.40	2.60	55~	7.00~	0.05	0.50	0.05	0.30	2~	P ~	~	11.60~	D ~	71DD68D301C30 ~	CBN ~	TB670 ~	3~	ISO$DC11T3043NA$$04 ~	32.51 ~	DCGW ~	Y ~	~	6269286	1	TB670
DCGW 11T308 LS	9.52	3.97	0.80	2.20	55~	7.00~	0.05	0.50	0.05	0.30	1~	P ~	~	11.60~	D ~	71DD68D301C30 ~	CBN ~	TB650 ~	3~	ISO$DC11T3083NA$$08 ~	32.52 ~	DCGW ~	Y ~	~	6210522	2	TB7015 TB650
DCGW 11T308 LS2	9.52	3.97	0.80	2.20	55~	7.00~	0.05	0.50	0.05	0.30	2~	P ~	~	11.60~	D ~	71DD68D301C30 ~	CBN ~	TB610 ~	3~	ISO$DC11T3083NA$$08 ~	32.52 ~	DCGW ~	Y ~	11 ~	5403140	3	TB730 TB670 TB610
DCGW 11T308 LS2-SL	9.52	3.97	0.80	2.00	55~	7.00~	0.05	0.50	0.05	0.30	2~	P ~	~	7.70~	D ~	71DD68D301C30 ~	CBN+PVD ~	TB2215~	3~	ISO$DC11T3083NA$$08 ~	32.52 ~	DCGW ~	Y ~	11 ~	6309709	1	TB2215
DCGW 11T308 LS2-SM	9.52	3.97	0.80	2.00	55~	7.00~	0.05	0.50	0.05	0.30	2~	P ~	~	7.70~	D ~	71DD68D301C30 ~	CBN ~	TB2215~	3~	ISO$DC11T3083NA$$08 ~	32.52 ~	DCGW ~	Y ~	~	6309301	2	TB630 TB2215

LS: Small size CBN tip
LS2: Small size CBN tip with two corners
